71 Wheeling Rig

Discussion in 'Builds and Fabricators Forum' started by Fireball, Jan 18, 2021.

  1. Aug 21, 2022
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,841
    Exactly, except mime is a reverse rotation.

    Muzikp, Stakebed and Fireball like this.
  2. Aug 21, 2022
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    :rofl: That made me snicker.

  3. Aug 21, 2022
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,841
    :rofl:

    Rodney likes this.
  4. Aug 22, 2022
    jeep peep69

    jeep peep69 Member

    redding ca.
    Joined:
    Dec 8, 2007
    Messages:
    627
    Looks like the shift pattern in a old Mack truck with a quadraplex transmission

    Rodney and Ol Fogie like this.
  5. Aug 22, 2022
    Stakebed

    Stakebed Member

    Lake Co....
    Joined:
    Aug 2, 2022
    Messages:
    691
    @Fireball , four days later and I have read 45 pages. Very entertaining. Thank you for sharing.

  6. Aug 22, 2022
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    Thanks! You've got some stamina!

    Rodney and Stakebed like this.
  7. Aug 23, 2022
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,841
    It is really easy to get hooked on these interesting threads, I have stayed up most of the night lots of times reading them all the way thru. I guess it is just one more of the symptoms of ''jeep'' addiction.

  8. Aug 24, 2022
    Rodney

    Rodney Member

    Sierra Foothills
    Joined:
    Jan 9, 2021
    Messages:
    366
    Welcome to the Forum Joe.

    Stakebed likes this.
  9. Sep 1, 2022
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    Finally got my stickers from the printer. I was too cheap to pay for priority printing/shipping.

    They turned out great:
    [​IMG]

    I stuck one of each on magnetic backing for installation in the Jeeps.

    Here's a new one compared to an original sticker. The font is different but close and it's slightly taller. Overall, it's a pretty decent facsimile and looks like something Jeep might have made if there were factory equipped OD Jeeps:
    [​IMG]

    Here it is compared to the what I could find on the web. I hated that the overdrive was separate and hence in the wrong place (and a different height!). The fonts are a mess and I don't like the addition of the white. That's why I went to all the trouble:
    [​IMG]

    One the '71. Before:
    [​IMG]

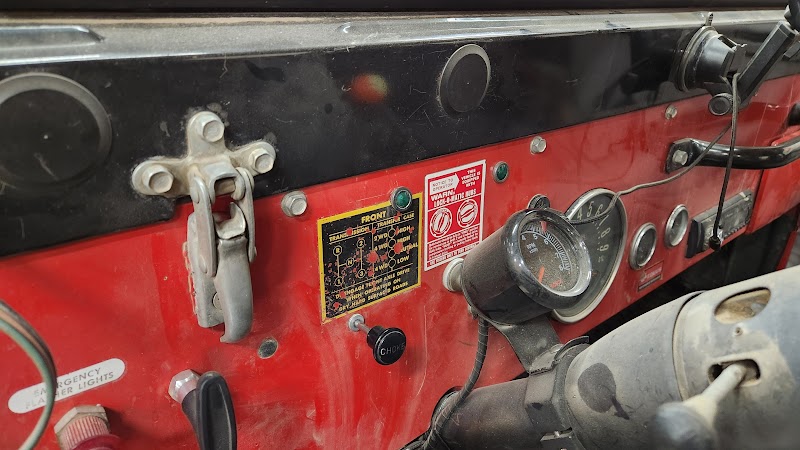

    I needed to trim the new decal a little bit to clear the added turn indicator, choke, and knob blank. After:
    [​IMG]

    Much better!

    And on the '68 with 3-spd, OD, single stick:
    [​IMG]

    As for selling these, I've worked on a bunch of different iterations of transmissions and transfer cases. I've also centered the off center "transfer case". After seeing these in person, I want to thicken all the lines a little bit before printing more.

    Once I get the art fixed up, I'll make a posting in the Member Market section to sell them. I think the cost will be around $20.00 each delivered. It costs me around $7.00 each in minimum quantities of 5. The extra covers my effort, duplicates of odd configs that won't sell, and shipping to the final recipient. I definitely won't be getting rich off it.

    Completely custom ones in different colors or whatever would also be possible.

    1947cj2a, 73 cj5, Danefraz and 15 others like this.
  10. Sep 18, 2022
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    Well, I finally got a chance to do some real off-property 4-wheeling and I have to say I love the truck 4-spd. One of the best things I've done with this Jeep. One rocky hills like this one (that is easily twice as steep as the photo looks), it chugged right up at a nice slow speed that allowed you to pick your line:
    [​IMG]

    This biggest complaint was the carb loading up when shut off hot, sitting for a while, and then restarted. The hand throttle was a great help because I could set the idle at 1300 for a few minutes so it wouldn't die until it cleared out. I already have an insulator under the carb. I'm going to lean it out two steps to see if it helps but it really means fuel injection has climbed higher up the priority list.

    73 cj5, blalp!, Ol Fogie and 10 others like this.
  11. Sep 19, 2022
    Buildflycrash

    Buildflycrash More or Less in Line. 2024 Sponsor 2022 Sponsor

    Gulf Breeze FL...
    Joined:
    Jun 5, 2007
    Messages:
    3,677
    It's a really nice modification for wheeling.

    blalp!, Ol Fogie, Jw60 and 1 other person like this.
  12. Sep 25, 2022
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    Last weeks Idaho Jeeping trip wasn't completely without mechanical failure.

    This happened to the brake pedal pad:
    [​IMG]

    Luckily I was able to get it off the trail. :rofl:

    New pads installed:
    [​IMG]

    Danefraz, 73 cj5, duffer and 9 others like this.
  13. Sep 25, 2022
    ITLKSEZ

    ITLKSEZ Hope for the best, prepare for the worst

    Spokane Valley, WA
    Joined:
    Aug 13, 2015
    Messages:
    6,704
    I had no idea there was such carnage!

  14. Feb 26, 2023
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    Finally got around to fixing an annoyance on the '71.

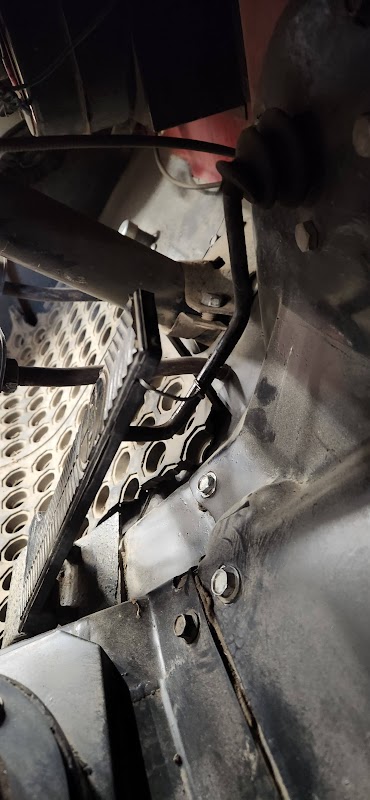

    When you're going up a steep hill and take your foot of the gas pedal, it does this. I can't bend my toes back enough to get my foot back on it unless I flip it forward with my hand:
    [​IMG]

    It drives me crazy when it happens and then I usually forget about it until it happens again. Not this time!

    I suspect a new pedal pedal from PartsDude4x4 would would fix the issue with the bottom flap that's long missing from mine:
    [​IMG]

    But I'm too cheap to do that at the moment so I drilled a hole in my current pedal:
    [​IMG]

    Wrapped some safety wire around a 3/8" drill bit that's a little bigger than the throttle rod:
    [​IMG]

    Then attached it to the pedal with a small screw driver as a spacer to keep some slop:
    [​IMG]

    Tidied up:
    [​IMG]

    Installed:
    [​IMG]

    It seems to work well. Doesn't bind the the throttle at all and the pedal not longer leaves the throttle rod:
    [​IMG]

    Fixed until I finally buy the new pedal.

    Last edited: Feb 26, 2023
  15. Feb 26, 2023
    Danefraz

    Danefraz Well-Known Member 2023 Sponsor 2022 Sponsor

    Chico CA
    Joined:
    Aug 11, 2012
    Messages:
    2,283
    food for another 50 years

    Ol Fogie likes this.
  16. Feb 26, 2023
    Jw60

    Jw60 Is that a new noise? 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Trails end
    Joined:
    Apr 8, 2008
    Messages:
    4,911
    That's something I now need to do on mine.

  17. Feb 26, 2023
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,792
    Only took about 8 minutes!

    Ol Fogie, blalp! and Jw60 like this.
  18. Feb 26, 2023
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,841
    proof, you can always do something, you just have to look and think outside the box.

    blalp! likes this.
  19. Feb 26, 2023
    Warloch

    Warloch Did you say Flattie??? Staff Member

    Falcon, CO
    Joined:
    Mar 4, 2003
    Messages:
    5,479
    It would take me twice that long to find my tools. The pile on the bench is still taller than I am :banghead:

    vtxtasy, Fireball and Ol Fogie like this.
  20. Feb 26, 2023
    Rozcoking23

    Rozcoking23 RUN & GET BIT! 2024 Sponsor

    Stockton, CA
    Joined:
    Mar 29, 2008
    Messages:
    891
    Your bench and mine must be hiding in the same place. Haven’t seen mine in couple weeks.

    vtxtasy and Stakebed like this.
