Painted Brake Parts

Discussion in 'Early CJ5 and CJ6 Tech' started by Andrew Theros, Sep 4, 2021.

  1. Sep 4, 2021
    Andrew Theros

    Andrew Theros Member 2022 Sponsor

    Los Osos, CA
    Joined:
    Feb 24, 2021
    Messages:
    162
    Hello All!
    Wow RockAuto is fast. They must have a warehouse near me. Ordered brake drums yesterday, got ‘em today!

    Question is, do you guys paint brake drums and hubs?
    Why/why not?

    I sand blasted and painted my backing plates and other small parts that weren’t replaced, with high temp bbq paint. I was planning on the same for drums and hubs before deciding to replace them.

    As always, look forward to your thoughts!

    Thanks,
    Andy

    ETA, I live in a coastal environment. I am pretty sure a Pelican’s butt would rust here if it is not cleaned and oiled…

  2. Sep 4, 2021
    OzFin

    OzFin Vintage Jeep Guy

    Michigan
    Joined:
    Jul 16, 2007
    Messages:
    836
    I paint them.
    The drums get Rust-Oleum Black BBQ and the backing plates, hubs, etc get Rust-Oleum black semi-gloss.
    I like the clean look of carefully painted hardware and its easier to clean mud or road grime from the painted surface, I personally don't like the "rust patina" look.

    Jonbbrew, Lockman and Andrew Theros like this.
  3. Sep 4, 2021
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor 2021 Sponsor 2020 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    1,782
    I'm interested to hear other's take on this. I never do, but always hate the way it looks in short order. I'd love to hear some definitive rationale why I should do this....

    Andrew Theros likes this.
  4. Sep 4, 2021
    Dandy

    Dandy Member 2020 Sponsor

    Estherville IA
    Joined:
    Feb 10, 2008
    Messages:
    771
    What ever ya do, make sure that you re torque the lugnuts.
    Put your tires on, torque em. Drive 5 miles or so and retorque em.

    Andrew Theros likes this.
  5. Sep 4, 2021
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,409

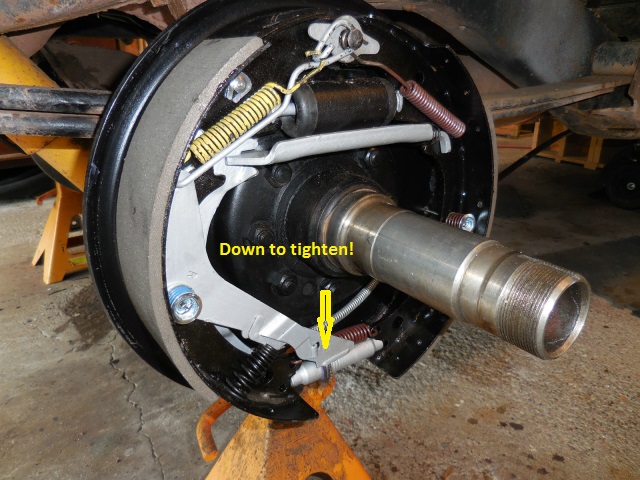

    I paint everything.

    [​IMG]

    Sometimes it's hard to tell where to stop.

  6. Sep 4, 2021
    FinoCJ

    FinoCJ 1970 CJ5 Staff Member 2021 Sponsor 2020 Sponsor

    Denver, CO
    Joined:
    Jul 18, 2013
    Messages:
    4,467
    My mag slot wheels show quite a bit of the drums through the slots...initially I didnt paint the drums (I did paint the backing plates etc), and after a couple years, the rust colored drums were a bit of an eye-sore behind the nice wheels. I've now painted them black, although I debated a grey of some type to match the the wheels, but figured the black would help provide more 'shadow' in the window slots. In other words, I painted the drums for purely aesthetic reasons, not function.

    Andrew Theros and jeeper50 like this.
  7. Sep 4, 2021
    Dave Deyton

    Dave Deyton Member

    Fuquay-Varina, NC
    Joined:
    Oct 12, 2003
    Messages:
    544
    If I go in and build this stuff, I paint it all.

    Brake rebuilding M38A1.jpg

    Rebuilt brakes on my 55 M38A1.



    Dave

    Lockman and Andrew Theros like this.
  8. Sep 4, 2021
    boopiejones

    boopiejones I can’t drive 55

    California east bay
    Joined:
    Mar 16, 2020
    Messages:
    415
    I just pulled one of my front drums apart to replace a leaky wheel cylinder, and it looks like the entire brake system has been sitting at the bottom of the ocean for a couple decades. I’m in a relatively dry climate. Northern CA, not coastal. So my vote would be to paint everything.


    Last edited: Sep 4, 2021
    Andrew Theros and FinoCJ like this.
  9. Sep 4, 2021
    Howard Eisenhauer

    Howard Eisenhauer Super Moderator Staff Member

    Tantallon, Nova...
    Joined:
    Nov 22, 2003
    Messages:
    7,493
    I paint things just on the general principle of I Hate Rust.

    It's also a lot easier, at least psychologically, to work on them later on if things are nice & clean, or at least easily cleaned.


    Andrew Theros likes this.
  10. Sep 4, 2021
    Andrew Theros

    Andrew Theros Member 2022 Sponsor

    Los Osos, CA
    Joined:
    Feb 24, 2021
    Messages:
    162
    I was wondering what my dog was barking at the other night…
    Clearly it was you in my driveway taking pictures of my brakes!

    boopiejones likes this.
  11. Sep 4, 2021
    Andrew Theros

    Andrew Theros Member 2022 Sponsor

    Los Osos, CA
    Joined:
    Feb 24, 2021
    Messages:
    162
    Thank you All!

    Primer and paint tomorrow!

  12. Sep 5, 2021
    CJ Joe

    CJ Joe Truckhaven Tough!

    Pinon Hills, CA
    Joined:
    Nov 9, 2002
    Messages:
    382
    Does the BBQ paint require heat curing? I find it very inconvenient to have to wait until the wife leaves to bake my parts in the oven.

    Andrew Theros likes this.
  13. Sep 5, 2021
    Alan28

    Alan28 Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Châtillon en...
    Joined:
    Oct 21, 2012
    Messages:
    2,324
    You forgot to paint the brake shoes (in red) (y)
    Long ago, there was some oil on the Norton brake shoes that I was driving.
    At the 1 st stop on my road, the feeling was intense... absolutely no brakes! :bow::censored:
    But, no car at the time on the road! :shock:

    Andrew Theros likes this.
  14. Sep 7, 2021
    Jonbbrew

    Jonbbrew Member

    Paso Robles, CA
    Joined:
    Mar 14, 2015
    Messages:
    735
    C8ABB21D-7974-49D0-9754-BB60B93CF1BC.jpeg FADD5D4A-8C29-433D-8E17-E2271EADCB89.jpeg I painted most everything...

    Last edited: Sep 7, 2021
    Andrew Theros and Fireball like this.
  15. Sep 9, 2021
    EFranzen

    EFranzen New Member

    Queen Creek AZ
    Joined:
    Nov 5, 2020
    Messages:
    22
    I use Dupli-Color Cast Iron Paint so it still looks like cast iron, but without the rust.

    upload_2021-9-9_18-29-25.png upload_2021-9-9_18-29-36.png

    Jonbbrew, Andrew Theros and Fireball like this.
  16. Sep 10, 2021
    OzFin

    OzFin Vintage Jeep Guy

    Michigan
    Joined:
    Jul 16, 2007
    Messages:
    836
    Here are the instructions I followed.

    "Sprays: Dries to touch in 30 minutes and to handle in 1-2 hours. Allow paint to dry for 1 hour before heating. In order to achieve full cure, the coating must be heat cured at 450ºF for one hour. Product may emit smoke and harmless odor."


    I can fit two drums at a time in my propane grill :lol:

    Andrew Theros likes this.
  17. Sep 12, 2021
    Jonbbrew

    Jonbbrew Member

    Paso Robles, CA
    Joined:
    Mar 14, 2015
    Messages:
    735
    GENIOUS!!!!!
