71 Wheeling Rig

Discussion in 'Builds and Fabricators Forum' started by Fireball, Jan 18, 2021.

  1. Mar 14, 2022
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor 2021 Sponsor 2020 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    1,802
    Fireball, do you know if these lines ever go bad? I know yours was pinched, but on the '70 that I used to combine with my '57, the lines looked fine, so I just plugged them back in and called it good. Not sure if I should replace the lines "while I'm at it" (famous words that are causing my project to drag out for YEARS). HAHAHA I know we've had this discussion before, and we came to the conclusion that two jeeps are better than one.

    Fireball likes this.
  2. Mar 14, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    Other than the spot that rubbed through, the current nylon lines seem fine. Not brittle, not discolored, no signs of age. They seem like they would be fine to reuse. Just make sure they aren't rubbing on any sharp body edges.

    givemethewillys likes this.
  3. Mar 16, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    My wife is good to her word and tonight was the night to drop the trans/transfercase out.

    Here we go:
    [​IMG]

    And it's out:
    [​IMG]

    it would have been out faster if I didn't forget the transfercase mount attached to the frame rail. Took a few minutes to figure out why we couldn't pull the transmission back.

    It's a lot smaller than the T18 that's going in:
    [​IMG]

    The T14 looks to be in good shape. I'll probably keep it around as a spare for the '69:
    [​IMG]

    Well there's a pilot bushing that isn't a stuggle. It came loose with the transmission:
    [​IMG]

    Looks like I need to resurface the flywheel. As bad as it looks visually, it feels perfectly smooth to the touch and should clean up fine:
    [​IMG]

    The pressure plate looks similar and the throwout bearing feels a little crunchy (when I got the Jeep, there were no clutch return springs and it was adjusted so the bearing was in contact at all times):
    [​IMG]

    Luckily I have a beautiful Valeo clutch/pressure plate/throwout bearing that came with the spare motor. It appears to have almost no use:
    [​IMG]

    Interestingly the different brand clutches are built different. Look at the difference in throwout bearing thickness:
    [​IMG]

    But when you stack the matching pressure plates and trowout bearings, they within 1/16" of each other. The new clutch should work fine:
    [​IMG]

    I'll drop the flywheel out tomorrow night so I can get it surfaced.

    Ol Fogie, Buildflycrash, Jw60 and 4 others like this.
  4. Mar 16, 2022
    Jw60

    Jw60 WRPD855 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    2,739
    I didn't have a cover plate for my motor so I also made one, out of 12ga. I trimmed the inside to match the rear of the motor and put a 10deg break on the upper parameter. Outside is all formed to the bellhousing. It's a little overkill but the Ross steering does hit it at times and I wanted it to be as water (mud) tight as possible. We have a lot of water crossings I want to try and they can have surprises.

    [​IMG]20200105_172136 by Joe with a jeep, on Flickr
    [​IMG]20200105_172834 by Joe with a jeep, on Flickr

    Last edited: Mar 16, 2022
    Ol Fogie, Rubicloak and Fireball like this.
  5. Mar 16, 2022
    Buildflycrash

    Buildflycrash The pride of Cucamonga 2022 Sponsor 2020 Sponsor

    Gulf Breeze FL...
    Joined:
    Jun 5, 2007
    Messages:
    2,821

    That is interesting. What is that dimension?

  6. Mar 16, 2022
    jzeber

    jzeber Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Morgan Hill, Ca
    Joined:
    Nov 15, 2003
    Messages:
    3,155
    Last edited: Mar 16, 2022
    Ol Fogie and Fireball like this.
  7. Mar 16, 2022
    Twin2

    Twin2 not him 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Virginia Beach, VA
    Joined:
    Apr 28, 2011
    Messages:
    5,164
    when I put the jeep T 18 into my jeep
    I had the input retainer OD cut down to use the T 14 release bearing
    also it had to be shorten . as it was touching the hub on clutch disc
    some things you can measure . when you have both units sitting side by side . straight edge across bell housing
    to measure the depth of things . :watch:

    Ol Fogie and Fireball like this.
  8. Mar 16, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    I cheated and bought the Novak input retainer that's pre-machined to GM specs. GM index size for the bellhousing, GM release bearing size, and shortened. That said, I'm still going to measure everything for the best possible chance of everything working.

    Ol Fogie likes this.
  9. Mar 16, 2022
    Rich M.

    Rich M. Shoe salesman 2022 Sponsor

    Maryland
    Joined:
    Mar 23, 2008
    Messages:
    1,604
    I bought the Ford retainer and used a Ford to bearing. Clutch fork had a short date with the flap disc . I'm cheap ..

    Ol Fogie, Twin2 and Fireball like this.
  10. Mar 16, 2022
    duffer

    duffer Rodent Power

    Bozeman, MT
    Joined:
    Sep 17, 2009
    Messages:
    3,606
    But the throwout bearing length depends on the type of clutch used. The diaphragm type usually take the short version and the B&B to long. But not always as I found out with the McLeod. I ended up remachining the adjustable pivot and using Mcleods adjustable length bearing. Sort of a pain in the posterior.

    Ol Fogie and Fireball like this.
  11. Mar 16, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    Yeah, that was my measurement last night. I was suspicious the bearing lengths were so different but when I measured with the pressure plate they were less than 1/16" different overall thickness, so it looks like the new(er) clutch/TO bearing will be OK.

    Ol Fogie likes this.
  12. Mar 17, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    Flywheel is off so I can drop it off at the machine shop:
    [​IMG]

    Amazingly, given all the oil everywhere, the rear main seal doesn't seem to leak at all:
    [​IMG]

    Some clutch measurements.

    The thickness of the old unknown brand clutch/throw out bearing:

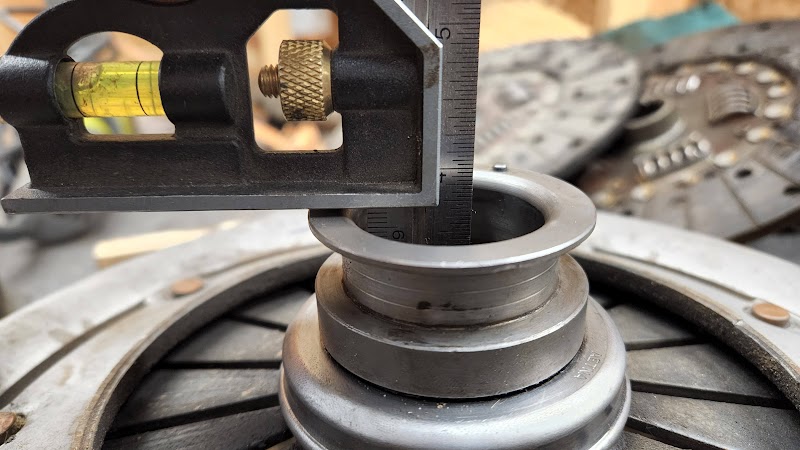

    [​IMG]

    And the new(er) Valeo one:
    [​IMG]

    It's actually closer to 1/8" difference. There should be enough adjustment in the cable. The Valeo parts are from the 225V6 CJ kit and were functional in a 1971 Jeep prior to me getting them.

    For other measurements, the rod input shaft barely protrudes past the bellhousing face and the end of the bearing retainer is about 3 18" back from the face of the bellhousing:
    [​IMG]

    The input shaft of the T-14 protrudes about 1/4" more past the bellhousing face (whitch is expected) . The end of the bearing retainer is less than ten thousands different from the Novak modified T18 part:
    [​IMG]

    Things generally look OK. The clutch/TO bearing is my biggest risk, but I think it will work.

    Ol Fogie, 47v6 and Buildflycrash like this.
  13. Mar 18, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    Post surfacing. Beautiful:
    [​IMG]

    I was smart enough to mark it before removal so I didn't have to try six times to get hte rotation right:
    [​IMG]

    Since it's way too tight up front to get a wrench on the crank bolt, I used some long bolts and a pry bar to hold the engine while torquing the flywheel bolts:
    [​IMG]

    Interestingly, the new pilot bushing isn't very tight either so I've got it set in place with red lok-tite. I'll let that dry overnight before I put the clutch on.

    Rubicloak, Ol Fogie, Danefraz and 4 others like this.
  14. Mar 18, 2022
    47v6

    47v6 junk wrecker! 2022 Sponsor 2021 Sponsor 2020 Sponsor

    USA
    Joined:
    Oct 25, 2006
    Messages:
    5,420
  15. Mar 18, 2022
    duffer

    duffer Rodent Power

    Bozeman, MT
    Joined:
    Sep 17, 2009
    Messages:
    3,606
  16. Mar 18, 2022
    47v6

    47v6 junk wrecker! 2022 Sponsor 2021 Sponsor 2020 Sponsor

    USA
    Joined:
    Oct 25, 2006
    Messages:
    5,420
    this https://www.henkel-adhesives.com/us/en/product/retaining-compounds/loctite_603.html is the correct retaining compound for sintered bearings.

    This https://www.henkel-adhesives.com/us/en/product/retaining-compounds/loctite_638.html is the product I used when I had my intermediate gear machined for the AA modification.

    The machinist bored the gear on one side with a slight taper to the interior of the gear so the race would press in, but be loose when fully seated. I was not confident at the time of my ability to perform the work, but am fully confident I can do it if this retaining compound fails.

    Last edited: Mar 18, 2022
    Fireball likes this.
  17. Mar 18, 2022
    Norcal69

    Norcal69 Out of the box thinker 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Northern California
    Joined:
    Sep 6, 2014
    Messages:
    2,783
  18. Mar 18, 2022
    45es

    45es Member 2021 Sponsor 2020 Sponsor

    Naches, WA
    Joined:
    Mar 31, 2007
    Messages:
    974
    Although I'm quite sure this product works very well, I personally work be reluctant to use it. If after using this product, for whatever reason I need to replace the pilot bushing, I don't like the idea of heating the end of my crankshaft to 250*C (482*F) to break the bond.

  19. Mar 18, 2022
    47v6

    47v6 junk wrecker! 2022 Sponsor 2021 Sponsor 2020 Sponsor

    USA
    Joined:
    Oct 25, 2006
    Messages:
    5,420
    Just throw away the engine!!!!

    duffer, ITLKSEZ and Fireball like this.
  20. Mar 18, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,832
    I wish I had a way to knurl it. Since it's completely captive once things are assembled, I just need it stuck well enough to say when I pull the clutch alignment tool (an extra input shaft) out. After than, it doesn't matter much what happens.

    Ol Fogie likes this.
