Dual tanks on a CJ5

Discussion in 'Early Jeep Restoration and Research' started by alpina72, Mar 28, 2015.

  1. Mar 28, 2015
    alpina72

    alpina72 Member

    Georgia
    Joined:
    Mar 1, 2015
    Messages:
    180
    Has dual tanks ever been an option?
    My 69/70 has the under seat tank and one in the back. There's a switch mounted on the floor between the seats.
    I haven't taken to close a look at the back one yet, there's a mound of fire ants underneath it at the moment.

    Dwins1 likes this.
  2. Mar 28, 2015
    Danefraz

    Danefraz Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Chico CA
    Joined:
    Aug 11, 2012
    Messages:
    2,293
    I can't answer if the factory provided dual, but it seems a common mod. (My mind is fuzzy but I didn't see dual tanks in my FSM, will try to remember to look again.)

    Mine had an underseat, then the PO moved it to the rear.

    I'll be adding the underseat back and putting a tank switch / solenoid so that the tanks operate on their own circuits and the 'lie-meter' on the dash works on both also. IIRC, there's a standard branded solenoid that has 5 or 6 outlets to handle the return lines as well, my 76 powerwagon only had a simple 3 outlet setup, and you could use two of these in 'reverse' sort of to make it work if you want your return line to work.

    AS a note: with dual tanks, I found in high-school (late 80s) it very smart to switch tanks when it hit 1/4 empty so I had, like on an old motorcycle, a little 'reserve' (at 10mpg tops, with a 22g and a 28g tank, 1/4 might get you to a station, but then it might not depending on where I went). Walking out of the boonies in the rain sucked and I learned that quickly.

    I've looked at rockauto, and the fancy solenoid is about $60, the special 'weatherpack' style wire-adapter is another $15. the two-position tank switch (5-pole I think) is another $10 or so. I think they wanted about $35 for the simple 3-way solenoid.

    Splitting hares on which way you go, but I think there are others that have done the 'two-solenoid' switches here and can may be describe it better.

    D

    Last edited: Mar 28, 2015
    Dwins1 likes this.
  3. Mar 28, 2015
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,596
    Common owner mod. Never a factory option.

    The tank was moved to the rear to comply with DOT rules that required the fuel tank be outside the passenger compartment. Same thing happened to pickup trucks - tanks behind the seat were typical before ca 1969. Your Jeep likely was delivered with the rear tank, if it's a '70.

    If you have no fuel return line or vapor recovery system, all you need is the three-way valve on the floor in front of the driver's seat. I put the under-seat tank in my '73 back in '73, and that's what I used. Installing the under-seat tank in a Jeep without one is fairly simple. Owners also would remove the tool box and put another tank on the passenger side, for even more fuel capacity.

    Last edited: Mar 28, 2015
    Dwins1 likes this.
  4. Mar 28, 2015
    alpina72

    alpina72 Member

    Georgia
    Joined:
    Mar 1, 2015
    Messages:
    180
    That makes sense. It didn't have the under seat tank when I got it but the hole and brackets are there and the correct gas cap was in a box of "stuff" that came with it. The back tank actually looks like its made from 1/4" plate but that could just be overkill on a skidplate. I need to get underneath and
    get a better look... but them damn ants.
    Going to clear up a
    spot in the garage once I get the frame done on my 78, then I'll get a better idea of what's going on.
    Would be nice if the rear tank has a sending unit on it.. in that case I'll just run two gauges.
    So far I've only run the motor off a soda bottle so I don't even know if that rear tank is any good.

  5. Mar 29, 2015
    wheelie

    wheelie beeg dummy 2024 Sponsor 2023 Sponsor

    York, PA
    Joined:
    Mar 6, 2004
    Messages:
    4,563
    My '71 (rear tank) came with a dandy thick tank skid plate. Not overkill in my mind.

  6. Mar 29, 2015
    Danefraz

    Danefraz Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Chico CA
    Joined:
    Aug 11, 2012
    Messages:
    2,293
  7. Mar 29, 2015
    alpina72

    alpina72 Member

    Georgia
    Joined:
    Mar 1, 2015
    Messages:
    180
    I just braved the ants and took a better look at it.
    It just has a skid plate on the bottom. I initially thought the hole thing was made from 1/4" plate.

    Thanks for the links Dane. Can definitely see the advantage/necessity of having a second tank. I think that front tank would only get me back and forth to the gas station.

    Dwins1 likes this.
  8. Feb 15, 2024
    Craigcooper

    Craigcooper New Member

    Ritzville WA
    Joined:
    Feb 15, 2024
    Messages:
    8

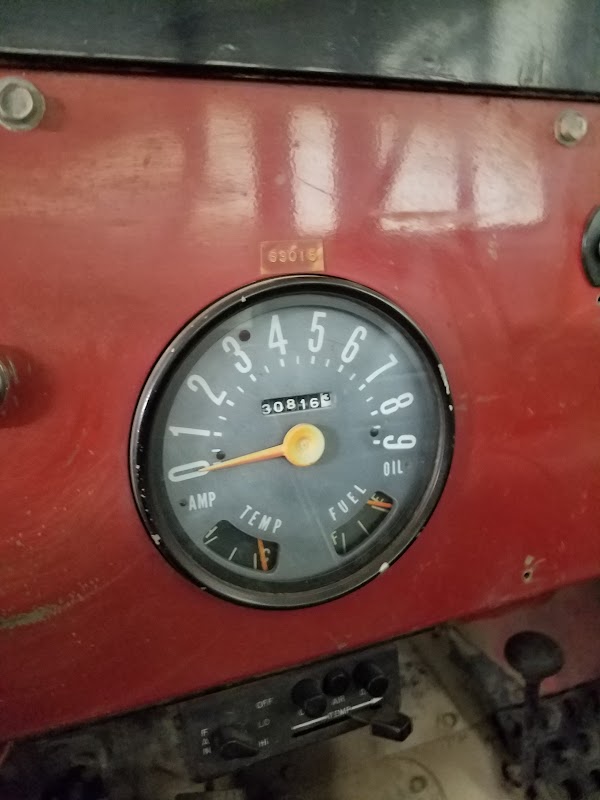

    Gotta jump in here. I have a 63 with dual tanks. The speedo even has a main and auxiliary fuel tank gauges. I’ve owned a lot of jeeps over the years and this is the first one with that speedo I’ve ever seen.

    Danefraz likes this.
  9. Feb 15, 2024
    SoCalNickG

    SoCalNickG Member 2023 Sponsor 2022 Sponsor

    Whittier, CA.
    Joined:
    Mar 17, 2017
    Messages:
    354
    Please post a picture when you can. I would like to see that speedo.

    Dwins1, vtxtasy, Craigcooper and 2 others like this.
  10. Feb 15, 2024
    Jw60

    Jw60 Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Trails end,...
    Joined:
    Apr 8, 2008
    Messages:
    5,176
    Me too, :cool:

    Dwins1 likes this.
  11. Feb 15, 2024
    Craigcooper

    Craigcooper New Member

    Ritzville WA
    Joined:
    Feb 15, 2024
    Messages:
    8
    I took one, trying to figure out how to resize it and up load it now.

    Dwins1 likes this.
  12. Feb 15, 2024
    Craigcooper

    Craigcooper New Member

    Ritzville WA
    Joined:
    Feb 15, 2024
    Messages:
    8
    here it is.

    Last edited: Feb 15, 2024
    Jw60 and Howard Eisenhauer like this.
  13. Feb 19, 2024
    jeepstar

    jeepstar Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Sheboygan
    Joined:
    Jun 28, 2006
    Messages:
    2,826
    Not seeing any pics

  14. Feb 19, 2024
    Howard Eisenhauer

    Howard Eisenhauer Administrator Staff Member

    Tantallon, Nova...
    Joined:
    Nov 22, 2003
    Messages:
    8,194
    Yet once again new users & permissions clash :(. I'll look into fixing it.


    Dwins1, Jw60, Beach66Bum and 3 others like this.
  15. Feb 19, 2024
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,890
    That gauge has definitely been messed with. You can see the paint line just above the alternator and oil lights. The lettering looks like rub-on transfers. Nice work by somebody!

    Here's a normal gauge for comparison:
    [​IMG]

  16. Feb 19, 2024
    Beach66Bum

    Beach66Bum 1966 Tuxedo Park Mark IV 2024 Sponsor

    Big Island on...
    Joined:
    Oct 30, 2015
    Messages:
    1,630
    Wow, that’s a cool mod done on the speedo! The SW gauges would easily swap side to side, as the temp and fuel gauges are the exact same size. First I’ve ever seen this done.

    Dwins1 likes this.
  17. Feb 19, 2024
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,890
    Agreed. It's pretty clever.

    Dwins1, vtxtasy and Beach66Bum like this.
  18. Feb 20, 2024
    Craigcooper

    Craigcooper New Member

    Ritzville WA
    Joined:
    Feb 15, 2024
    Messages:
    8
    Yup, now that you point it out it’s pretty obvious haha. Thanks for being the second set of eyes. This cj5 is just full of surprises but they’re all subtle. Cool thing is all the round Stewart Warner gauges work and look great. This even had a round SW temp gauge that starts at 60 degrees, never seen one of those.

  19. Feb 20, 2024
    vtxtasy

    vtxtasy oldbee 2024 Sponsor 2023 Sponsor

    Tucson, AZ
    Joined:
    Feb 5, 2006
    Messages:
    1,514
    A toggle switch switch would be a whole lot easier but an A for effort.

  20. Feb 20, 2024
    duffer

    duffer Rodent Power

    Bozeman, MT
    Joined:
    Sep 17, 2009
    Messages:
    4,572
    Yep
