Woodstock

While waiting on fuel injectors, I spent some time looking at the old 8274 that's going on the jeep. This has been considered as possibly optional for this season, if I run out of time, but what the heck.

The round clutch knob is the first indicator of a early-ish winch. I think pre-1980. The 5-digit serial number also says early. The date code, AK8, means- A= first month (Jan), K=11th working day of the month (in 1978 that was the 17th), and 8= either 1978 or 1988, and since we know it's pre-1980, it's 1978. So Jan. 17, 1978. My brother Sam's
11th birthday. Pretty cool.

I am going to upgrade/rehab this winch a little. In the plan is a new 6 hp motor, new Albright contactor, new contactor cover and plug, new brake, new remote, new rope, and a general clean up. So I started with pulling the original Prestolite motor, that I think is like 2.5 HP.

I received my really nice TRE rope, 125' of 3/8" with an eye on the end. This is the same rope @Fireball used recently. TRE is reasonable, and was on my short list before he got it. But thanks to Roy, for the advice on length, I think it is better to carry an extension than to load up the drum with 150' and not have room if it bunches up.

I also got the beginnings of my fan shroud from Summit. I think this will be easy to adapt to my situation.

A little more on the winch. I bought this nice Warn aluminum fairlead, it really wasn't bad at 50 bucks.

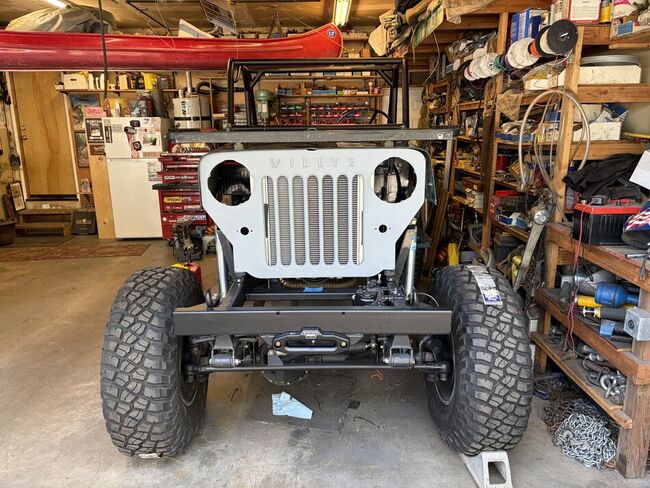

Mocked up there. I think that under the bumper will be fine, as this jeep is a little on the high side, although it should come down 3". I like the look a lot. Can't wait to get the winch in there.

In other news, I got the front bedliner sprayed. I still need to spot weld the driver side tool box lid down, but the floors are mostly done (enough). "Done enough" might become a term I use more and more...

And then, a very welcome package.

In my book, you just can't beat Tom Woods. I ordered it Friday, received it Tuesday. Free shipping and no drama. Anyway, it's 22-1/2" long, with a longer travel spline and 1310 ujoints. I know that's a little small, but Nick and I run 1310's and have never had a problem. Of course, that's with a V6. I think as long as I keep my foot out of it, it should be fine.

Last edited:
This is the little touch screen programmer that comes with the Holley Terminator X. I can make changes, troubleshoot, or just use for monitoring what's going on. I started to think about where to put it.

Maybe here, I don't know, my dash is kind of full.

Then I turned to the fan shroud. This is a universal shroud that I got from Summit. It needs a little trimming for the upper hoses.

Then some careful measuring and layout to transfer the center of the fan to the shroud. And then cut.

It needs some clean up, but this will work. Usually "universal" isn't, but in this case it was a cost effective time saver.

Will you close up the bottom of the shroud or leave it open?

I’m going to start building my shroud in a few days as soon as the half doors are finished, and my radiator sits higher than the fan like yours, so I’ve been thinking about how I will seal with the bottom.

cj2atruck said:
Will you close up the bottom of the shroud or leave it open?

I’m going to start building my shroud in a few days as soon as the half doors are finished, and my radiator sits higher than the fan like yours, so I’ve been thinking about how I will seal with the bottom.
Click to expand...

I made the bottom piece removable on both of the ones I made so you can get the upper part out without removing the fan.

Shroud made of welded steel on the '71:
AP1GczMhScVIkKmoYxxW-BUq2-LdkZtQDDvMl-yYEiB22eIu6uhkZlm1y_OD60HzYSN5CjP6txXhyj_TqzTdiw92IFOQahRq3i4wK_III__pdCnsgtGGpEcWqyMl_VKUCxAqukRVv1s1wXrV2uzDR2WWwUD-OQ=w1000


Riveted aluminum shroud on the DJ-2A:
AP1GczOpnU2TpqvYWz7Lxm26Nr0i-r2fHKO5v6zOZv_ztyTNe3siEvhytmXbD1-x1eXLLvYd2QZ2aofz8jFMDzPjF6e-ZAISZSf9vSx0jmess6mm8eSngeSZjuyEO78A68j2sns5kXdaFJeciuChMjcS588umQ=w1000


The lower piece was a little floppy on the thin aluminum shroud, so I added a brace to the crossframe for support:
AP1GczM-56rwkArbEx0pO248ds8MagH2tAf6GQqzhF0p6jdivYjoOY2-IU5UZ1q1hKuITRjFlXypv9KrA2J9GqdLoMTwkKYDAuqBq_2DkKovJwwgcg6U2vtgeMPmNA5fBo5QXpVPahYz3GsRLcvUJFhqzBUo_w=w1000

cj2atruck said:
Will you close up the bottom of the shroud or leave it open?
Click to expand...
You know, I wasn't going to. But I now see Roy's removable bottom shroud and kind of like it. But that will be later, if needed kind of thing. I am playing beat the clock (like a few guys here), to be ready for a little trip that is coming up fast. So anything that can wait, will wait. I also think, knock wood, that the big mechanical fan, combined with the shroud, is going to be fine for a little 5.3. Anyway, my plan was to just do what the stock V6 jeep has, open on the bottom. This is my stock '67 shroud.

Fireball said:
I made the bottom piece removable on both of the ones I made so you can get the upper part out without removing the fan.

Shroud made of welded steel on the '71:
AP1GczMhScVIkKmoYxxW-BUq2-LdkZtQDDvMl-yYEiB22eIu6uhkZlm1y_OD60HzYSN5CjP6txXhyj_TqzTdiw92IFOQahRq3i4wK_III__pdCnsgtGGpEcWqyMl_VKUCxAqukRVv1s1wXrV2uzDR2WWwUD-OQ=w1000


Riveted aluminum shroud on the DJ-2A:
AP1GczOpnU2TpqvYWz7Lxm26Nr0i-r2fHKO5v6zOZv_ztyTNe3siEvhytmXbD1-x1eXLLvYd2QZ2aofz8jFMDzPjF6e-ZAISZSf9vSx0jmess6mm8eSngeSZjuyEO78A68j2sns5kXdaFJeciuChMjcS588umQ=w1000


The lower piece was a little floppy on the thin aluminum shroud, so I added a brace to the crossframe for support:
AP1GczM-56rwkArbEx0pO248ds8MagH2tAf6GQqzhF0p6jdivYjoOY2-IU5UZ1q1hKuITRjFlXypv9KrA2J9GqdLoMTwkKYDAuqBq_2DkKovJwwgcg6U2vtgeMPmNA5fBo5QXpVPahYz3GsRLcvUJFhqzBUo_w=w1000
Click to expand...
Thanks for the pictures. I plan on making my shroud in four pieces and use rivet nuts for easy assembly, but had not figured out the bottom piece yet. My radiator is for a 1965 Mustang with a 289, so I have a lip on each side that will hold the shroud in place.

I know, it should be running by now. Here's what's happening. I decided to go with a LS2 Trailblazer SS intake, because it's slightly shorter, and has good flow, so why not? Well, now I see why. The TBSS intake I bought came with E85 injectors, which I didn't notice until I went to program the Terminator X. So, I went shopping for injectors that fit the TBSS manifold, that Holley recognizes. And yes, I could buy them from someone that has them in a few days, but they cost $80 each. So, instead, I bought genuine GM on Ebay for 1/8 the price, and it takes a week. Got them today. They are too short, and this is a known issue, so ICT Billet makes spacers that solve the shortness. I can pick those up at Summit tomorrow. Rant over.
Anyhoo... over the weekend, it was nice, so I decided to paint the grille so I don't have to drain the cooling system later to paint. So I hung the grille.

I mixed up some Woodstock Green Poly, about 6 ounces, and 3 coats 10 minutes apart, it's done.

Then I turned back to the rocker guards. A little welding to finish the stretch, and some bedliner, they are ready to go on after bodywork.

And some touch up and paint on the seat mount. I added a center support to reduce flex. This means I'm close to permanent seats.

It was a perfect day for painting, and it turned out good. I have to be patient. I found setting a 10 minute timer for letting the paint flash helps. That way I don't spray too much too soon, and I don't wander off on something else and forget. Anyway, it's good to have it done, and I feel better about my paint skills.

timsresort said:
I know, it should be running by now. Here's what's happening. I decided to go with a LS2 Trailblazer SS intake, because it's slightly shorter, and has good flow, so why not? Well, now I see why. The TBSS intake I bought came with E85 injectors, which I didn't notice until I went to program the Terminator X. So, I went shopping for injectors that fit the TBSS manifold, that Holley recognizes. And yes, I could buy them from someone that has them in a few days, but they cost $80 each. So, instead, I bought genuine GM on Ebay for 1/8 the price, and it takes a week. Got them today. They are too short, and this is a known issue, so ICT Billet makes spacers that solve the shortness. I can pick those up at Summit tomorrow. Rant over.
Anyhoo... over the weekend, it was nice, so I decided to paint the grille so I don't have to drain the cooling system later to paint. So I hung the grille.

I mixed up some Woodstock Green Poly, about 6 ounces, and 3 coats 10 minutes apart, it's done.

Then I turned back to the rocker guards. A little welding to finish the stretch, and some bedliner, they are ready to go on after bodywork.

And some touch up and paint on the seat mount. I added a center support to reduce flex. This means I'm close to permanent seats.

It was a perfect day for painting, and it turned out good. I have to be patient. I found setting a 10 minute timer for letting the paint flash helps. That way I don't spray too much too soon, and I don't wander off on something else and forget. Anyway, it's good to have it done, and I feel better about my paint skills.
Click to expand...
I see an M37 and M274 in the background Nice!

Not as sexy as hearing my LS run, but also needed. The Warn 8274 (DOB 1-17-78), needs a lot, and I can work on it a little at a time after work. First, more disassembly, to get the drum off, I have to crack it open.

Drum bead blasted and painted. This is the easy part.

Next, I need to rebuild the brake assembly. I bought a bunch of parts from Montana Jack's Outpost.
They have everything I need for a 8274 rebuild. First I need to get the brake assembly out of the housing so I can disassemble.

That wasn't too bad, just rotate a locking plate and tap the shaft out of the housing. Once in the vise, I thought I could use a puller (cheap HF) to pull the drum. Yeah, no. It was frozen on there, with heat, still nothing until I broke the high quality chinesium puller.

So into the press. With about as much pressure as I thought it could take, and some heat, it finally (ka-bang) let loose.
