Supertrooper's CJ5 build

Discussion in 'Builds and Fabricators Forum' started by supertrooper, Oct 15, 2010.

  1. Feb 3, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598

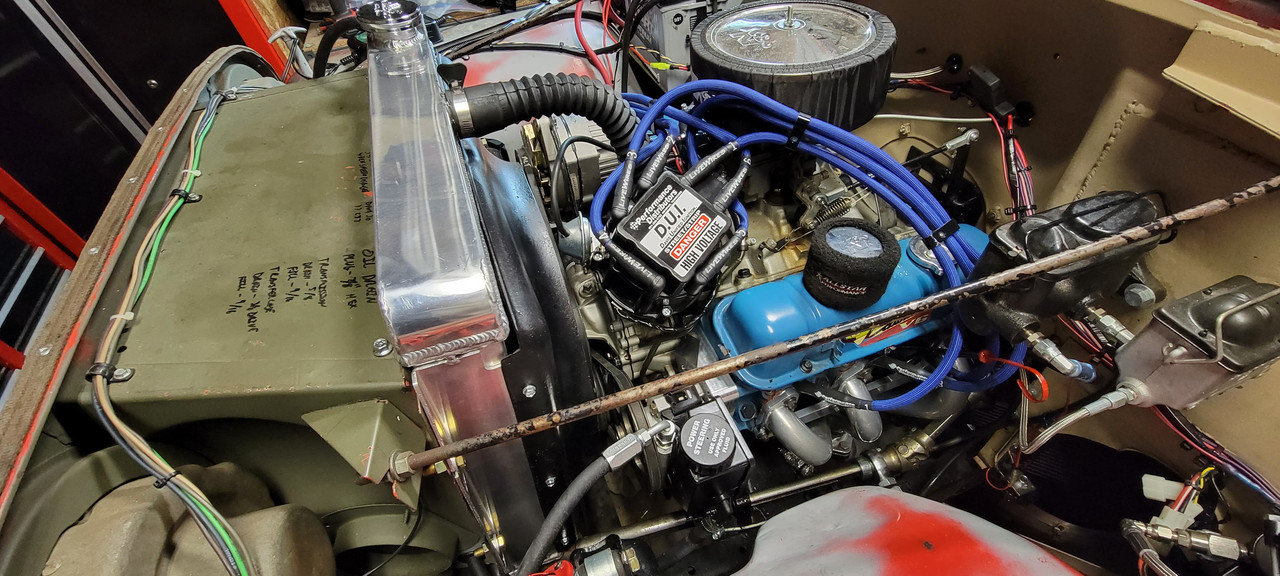

    As we all know a jeep is never finished. Haven't had much free time to tinker with the jeep but over the last few weeks I've been able to squeeze in and hour or two after work. The weekend before last years rubicon run i tried putting in the champion 3 core radiator and partsdude fan shroud but because of how high i mounted the steering gear box the steering shaft interfered with the lower corner of the radiator. I would need to notch the radiator tank for clearance but i didn't have a way to weld aluminum so it got put on hold. On Black Friday i found a deal on a ac/dc tig welder that i couldn't pass up. I notched the radiator and added a bung for a drain plug. The welds aren't pretty but they dont leak so far.

    The DUI distributor and livewires i ordered back in june took quite a bit longer than expected, almost 13 weeks. Due to the extended length of the distributor shaft i didn't have to do and grinding for clearance and there is plenty of room to rotate for timing. Also added a new holddown and ARP holddown stud along with summit wire separators. Almost forgot to add that the vacuum advance can was charged so the vacuum line wouldn't hit the fan.

    My starter was sounding a bit sluggish and i decided to replace it with the compact powermaster unit Norcal69 posted about awhile back and it works much better that the stock starter. Hopefully since its smaller and not as close to the headers the longevity is better.

    In Buildflycrash's thread about his power steering vs power brakes thread someone posted that Brennans Garage made a bracket to put a newer TC style pump on a dauntless. Since i was going to replace my pump anyway i decided to give the tc pump a try. I used all the recommended parts on brennan page and everything went together perfectly and i was ableto reuse the hoses. Haven't had a chance to drive it with the new pump but i like how compact of a package it is compared to the old style Saginaw pump.
    [​IMG]

    Last edited: Feb 3, 2022
    jeepstar, tymbom, OzFin and 9 others like this.
  2. Feb 3, 2022
    bigjohn

    bigjohn Member

    Kelso Wa
    Joined:
    Mar 18, 2010
    Messages:
    912
    So much good in this photo dude, great work! Love that DUI and the packaging on that pump is so clean and uncluttered. Nice work!

    jeepstar and supertrooper like this.
  3. Feb 3, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598
    Thanks John :beer:

  4. Feb 5, 2022
    scott milliner

    scott milliner Master Fabricator

    Seattle Wa.
    Joined:
    Dec 17, 2002
    Messages:
    2,273
    Lots of nice work. Is a power brake booster in the future plans?

  5. Feb 5, 2022
    Norcal69

    Norcal69 Out of the box thinker 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Northern California
    Joined:
    Sep 6, 2014
    Messages:
    2,789
    So are you ready to Rubicon again this year?

  6. Feb 6, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598
    No, the manual brakes work great and dont take much effort at the pedal.

    I want to, my carb was giving me lots of issues last time so i definitely want to get efi installed and dialed in first. I still cant decide what system to go with. I like that GM TBI has long record of being reliable and every parts store in the country has parts for it. I like that the holley sniper is a direct bolt on and there is an option for an intank fuel pump with only a single feed line. My hang up with the holley is that there aren't many people running them on an oddfire and i dont know how the throttle body mounted ecm holds up long term.

  7. Feb 9, 2022
    johneyboy03

    johneyboy03 The green beast

    Quebec, Canada
    Joined:
    Jan 15, 2011
    Messages:
    2,049

    I would go over a gm tbi set-up. Maybe a litte harder to set-up but one you got it you wont touch it anymore. And as you said part are easy to source.

    supertrooper likes this.
  8. Mar 22, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598
    I ended up buying a gm tbi kit from Affordable Fuel Injection. It was delivered a couple weeks ago. So faw i have only taken the plastic loom off the harness and started planning out the wiring layout and adding wires for the crank trigger. For the fuel pump i went with an electric in-tank conversion kit from Tanks Inc. with a tbi rated walbro pump. I put in for vacation in April and plan on installing it then.

  9. Mar 22, 2022
    Jw60

    Jw60 WRPD855 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    2,751
    My kit from AFI has been worth it. I'ld get some fuel through the injectors asap. They use a cleaner that can cause the injectors to stick and you get to tap it unkindly with a hammer like a stuck starter.

    supertrooper likes this.
  10. Mar 22, 2022
    Buildflycrash

    Buildflycrash The pride of Cucamonga 2022 Sponsor 2020 Sponsor

    Gulf Breeze FL...
    Joined:
    Jun 5, 2007
    Messages:
    2,826
    WHAT?

  11. Mar 22, 2022
    Jw60

    Jw60 WRPD855 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    2,751
    My injectors were stuck open on my first start.
    I called tech support and they said it's the cleaner they use and to tap it with a big wrench.
    here:


    Last edited: Mar 22, 2022
  12. Mar 22, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598
    I'll definitely watch for that, thanks for the tip. There was a little bit of red-ish color liquid in the fuel inlet fitting. I assume its from bench testing the throttle body after rebuilding.

    Ol Fogie and Jw60 like this.
  13. Mar 28, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598
    I drove the jeep on Saturday since it was 95 degrees outside and i got to see how the new radiator does in warm weather. The temp stayed right at 170-175 in city and freeway driving. It got up to 185 on a steep grade. Overall im happy with the radiator and shroud but the stock style fan just doesn't pull enough air at a 600rpm idle. Engine temp goes up to 230 after im stopped and idling for a few minutes but drops quickly once i get moving again.

    One other small hiccup was a hose fitting on the power steering cooler started leaking. Since its right infront of the radiator the fan sucked the fluid through the radiator and flung it all over the front of the engine. My arms dont fit through the grill so im going to have to pull the radiator to fix the leak :censored:

    Fireball, 47v6 and ITLKSEZ like this.
  14. Mar 28, 2022
    47v6

    47v6 junk wrecker! 2022 Sponsor 2021 Sponsor 2020 Sponsor

    USA
    Joined:
    Oct 25, 2006
    Messages:
    5,424
    Free anti rust treatment!!!!!

    Fireball likes this.
  15. May 9, 2022
    066wally

    066wally New Member

    Joined:
    Dec 12, 2008
    Messages:
    11
    Are you using the stock fuel tank? I'd like to know which in-tank conversion kit you got and if is was a straightforward install. I'm swapping a 4.3l with TBI Into an early cj5.
    Thanks

  16. May 9, 2022
    supertrooper

    supertrooper Member

    moreno valley, ca
    Joined:
    Nov 12, 2007
    Messages:
    598
  17. May 9, 2022
    scott milliner

    scott milliner Master Fabricator

    Seattle Wa.
    Joined:
    Dec 17, 2002
    Messages:
    2,273
    47v6 likes this.
  18. May 10, 2022
    Jw60

    Jw60 WRPD855 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    2,751
    I got my tbi kit from the same place (affordable fuel injection) but used the stock tank, had fuel starvation issues and added a "surge tank" (modified marine fuel filter) to get around on less than a half tank.

    066wally and givemethewillys like this.
