'72 Ford Bronco Build;)

Discussion in 'Quitters' Club' started by Dne007, Jul 19, 2021.

  1. Jan 10, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Hi, again;) The dash on this old Bronco is quite busy? all the knobs n such.

    The dash as most you know has been out for some time, but this is what was;)

    [​IMG]


    There is a fake overlay which is/was glued in place and a little bitchy to get off, but I did get it off. I'll be getting a new one.
    [​IMG]

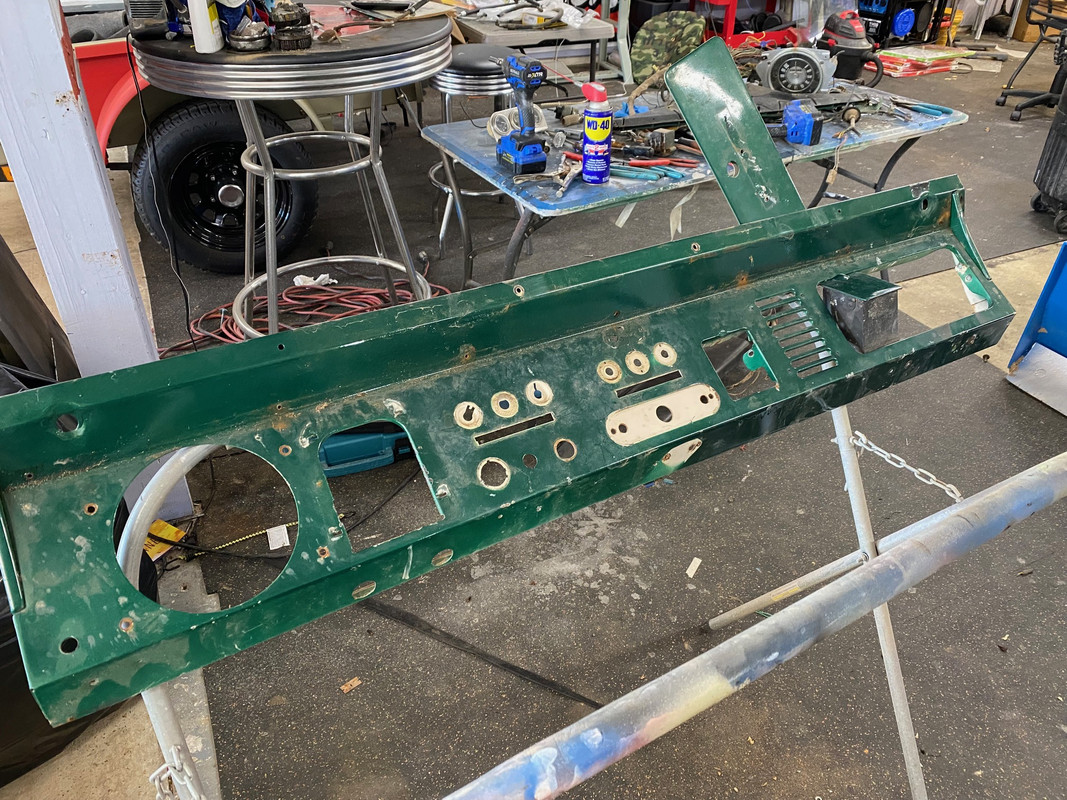

    Not sure if I want all holes, especially with aftermarket ac/heat :shrug:
    [​IMG]

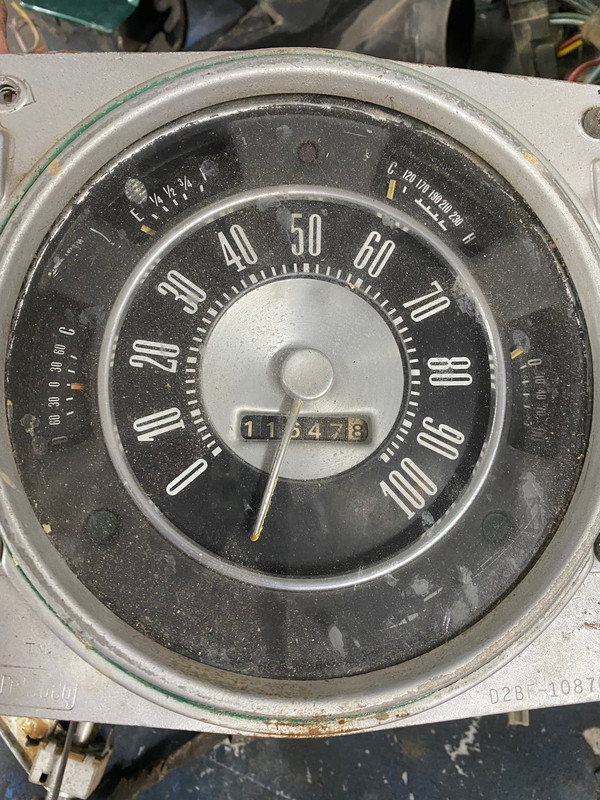

    omg, what a mess of wires. There's a guy on the Bronco forum which overhauls the gauges for a reasonable price, I think, I like the factory gauges.
    [​IMG]

    Just got in my passenger side door skin and window rails~ guess that's on for tomorrow (y)

  2. Jan 10, 2022
    hudsonhawk

    hudsonhawk Well-Known Member 2020 Sponsor

    North Texas...
    Joined:
    Feb 4, 2005
    Messages:
    1,902
    The metal for the Dash looks to be in good shape. If you don't want all the holes. I say fill them in and then use the real estate to mount decent versions of the cheap gages that were bolted on.

    Dne007 likes this.
  3. Jan 10, 2022
    Lockman

    Lockman OK.....Now I Get It . 2022 Sponsor 2021 Sponsor 2020 Sponsor

    White City, NY 14617
    Joined:
    Dec 4, 2018
    Messages:
    2,210
    Dne',
    On another subject.......How many Bantam trailers do you own ?

    Dne007 likes this.
  4. Jan 10, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Thank you John for chiming in, love a advice and opinions ;) I'd keep the ash tray, speaker hole, but the rest, I might just cut it all out and weld in new sheet metal~ still thinking, but not in a hurry~ ha;) I could probably sell the cut out to someone as a patch panel, but I'm still pondering~ ponder ponder ponder;)
    [​IMG]


    [​IMG]

    On my '68, oh, it was horrible!~ I did the same and cut what I didn't like~ out!
    [​IMG]

    and welded in new sheet metal~ and that's probably what i'll do;)
    [​IMG]

  5. Jan 10, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064

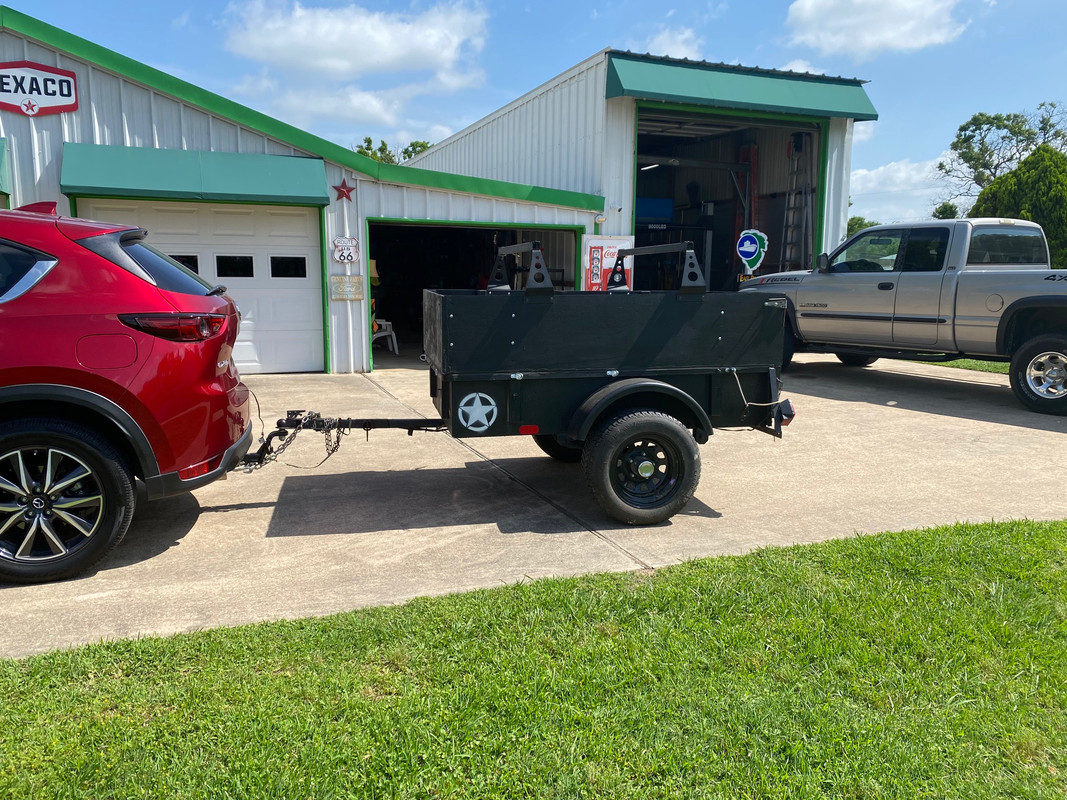

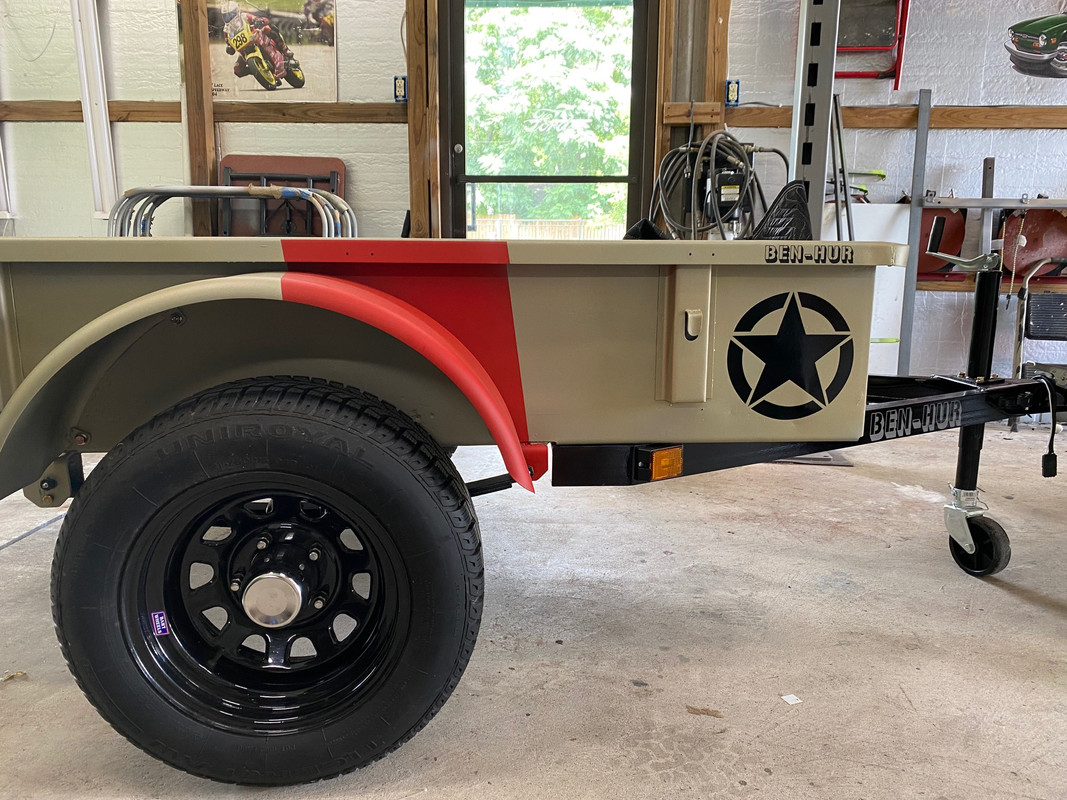

    Hi Locky! ;) I only have one, I bought this '46 for a ridiculous price so I could make it match my Jurassic park jeep, in case I'd ever want to "haul" something~ which never has come to pass:( IT was sub-project~ IT was a fun project, now the trailer is just full of stuff! :confused:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Danefraz, timgr, dozerjim and 3 others like this.
  6. Jan 10, 2022
    Howard Eisenhauer

    Howard Eisenhauer Super Moderator Staff Member

    Tantallon, Nova...
    Joined:
    Nov 22, 2003
    Messages:
    7,494
    The stock dash doesn't look that bad to me,

    [​IMG]

    You have some extra clutter but most of them appear to be stock & somewhat necessary. :shrug:

    Twin2, Glenn and givemethewillys like this.
  7. Jan 10, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Yore right Howard, I suppose when cleaned up, fresh paint, should look fine, thank you for the cool picture!!

  8. Jan 10, 2022
    Glenn

    Glenn Kinda grumpy old man Staff Member

    Apopka, Fl
    Joined:
    Sep 21, 2002
    Messages:
    11,725
    X 2!

    dozerjim and Ol Fogie like this.
  9. Jan 11, 2022
    Boyink

    Boyink Super Moderator Staff Member

    Ava, MO
    Joined:
    Sep 20, 2002
    Messages:
    6,030
    I never knew the speedo was left of the column.

    Seems placed by a married person.

    "How fast are you going anyway?"

    *blank stare*

    Twin2, Fly Navy, Fireball and 3 others like this.
  10. Jan 11, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Where does the time go!! :shrug:

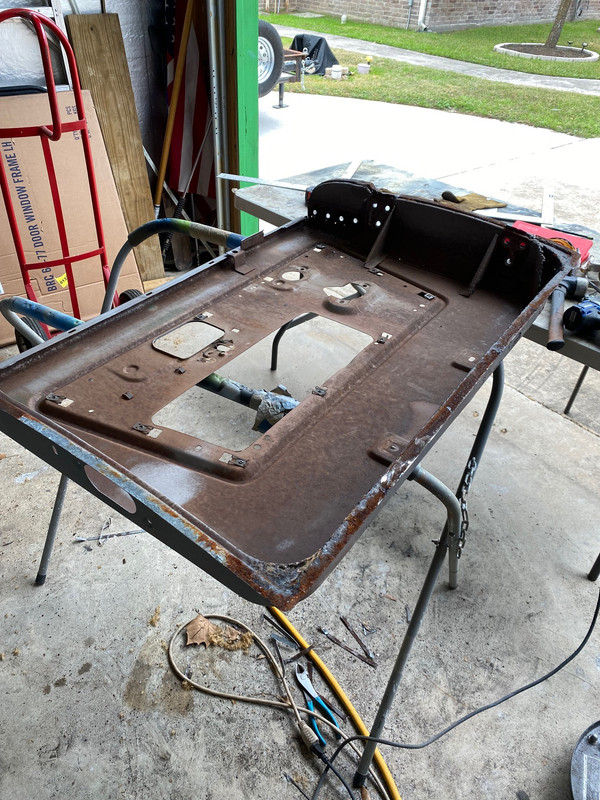

    I didn't get started on this passenger door until later afternoon~ but I'd say it was pretty easy to remove the skin. I just used my 4.5" angle grinder with a cutting disc, removed a smidgeon of the edge and vwala! Then a few spot welds, the removed the window frame~ I bought one by accident so may as well replace it too.

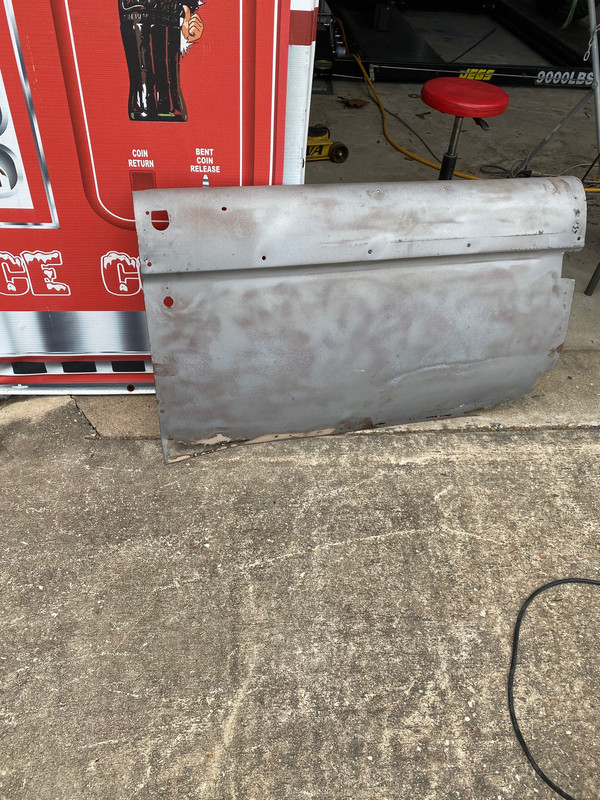

    The old skin may look repairable but alas is not. I test fitted the new skin and looks to fit nicely.
    [​IMG]

    [​IMG]

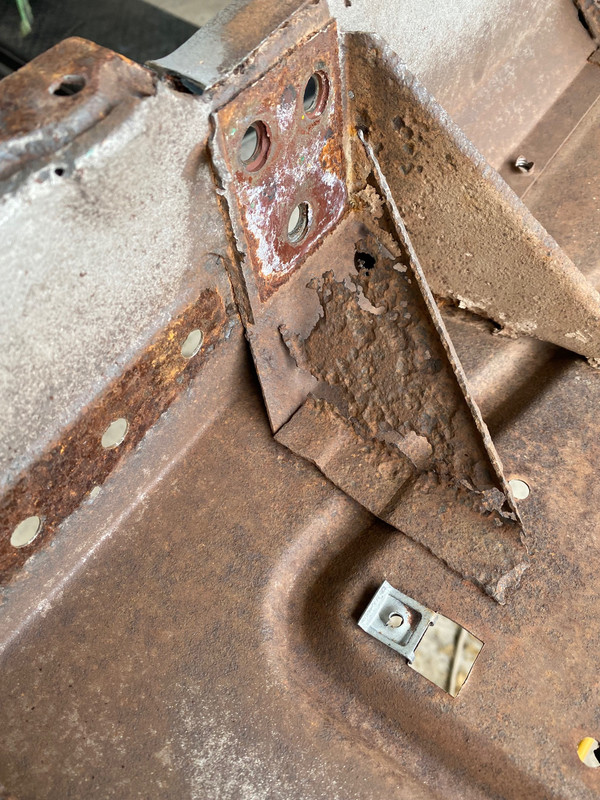

    This I get to play with tomorrow, I really don't think it will pose a problem, it's just metal(someone told me that) and I've got a few toys to make the job doable.
    [​IMG]


    Couldn't someone just have rolled up their windows! :madwife:
    [​IMG]

    Anyway, ran out of steam and it started getting colder than I like, something in the east wind that goes right through me! I don't think tomorrow going to be any better :( But I really need this door completed so I can install the rockers(both sides).

  11. Jan 11, 2022
    Fireball

    Fireball Well-Known Member 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    3,716
    I don't mind mechanical work and fabbing things but rust repair and body work like that makes me want to run and hide.

  12. Jan 11, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Believe me Fireball, it's not on my favorite thing to do by far, but it has to be done. Besides, it's a learning thing too;)

    Ol Fogie, Glenn, Twin2 and 2 others like this.
  13. Jan 11, 2022
    jeepdaddy2000

    jeepdaddy2000 Member

    Eagle Point oregon
    Joined:
    Jun 24, 2004
    Messages:
    732
    Not meaning to sound like a suck up, but I'm truly impressed with your metal skills.
    I can do just about anything mechanical, but body work is really an art. An art that I've I tried and failed at miserably.

    Dne007 likes this.
  14. Jan 12, 2022
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,410
    The Ben-Hur stencil is great! :clap:

    givemethewillys and Dne007 like this.
  15. Jan 12, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Thank you for noticing Tim!(y) Took a while to find someone to make those and I'm just terribly pleased with the outcome!!:bananatool:


  16. Jan 12, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Well I got a little done today~ fabbing up that lower piece was a little trying, but I feel it came out ok. Just need to finish up welding it in, grinding,etc. I still have more to do inside the door which will take a few hours. but the skin fits good, little room for moving it around (not really), like what you see is what you get. When I get the innards done, I'll paint the inside with por15 and hopefully get it by.
    time to make dinner!
    dne'

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Danefraz, dozerjim, jeepstar and 5 others like this.
  17. Jan 12, 2022
    SFaulken

    SFaulken Active Member 2021 Sponsor 2020 Sponsor

    Marysville, WA
    Joined:
    May 24, 2011
    Messages:
    1,031
    Your bodywork abilities (or at least your patience for bodywork) are infinitely better than mine are.

    Ol Fogie, Fireball and Dne007 like this.
  18. Jan 13, 2022
    jeepdaddy2000

    jeepdaddy2000 Member

    Eagle Point oregon
    Joined:
    Jun 24, 2004
    Messages:
    732
    Another quick reminder........
    The main wiring loom runs along the bottom of the dash. I've seen dozens of Bronco's with "ghost" electrical issues due to screws being run up into the loom while mounting some gee-haw or doodad under the dash lip.

    Ol Fogie, Fireball and Dne007 like this.
  19. Jan 13, 2022
    Dne007

    Dne007 Active Member 2020 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,064
    Moving along at a snails pace, I got a little more done.

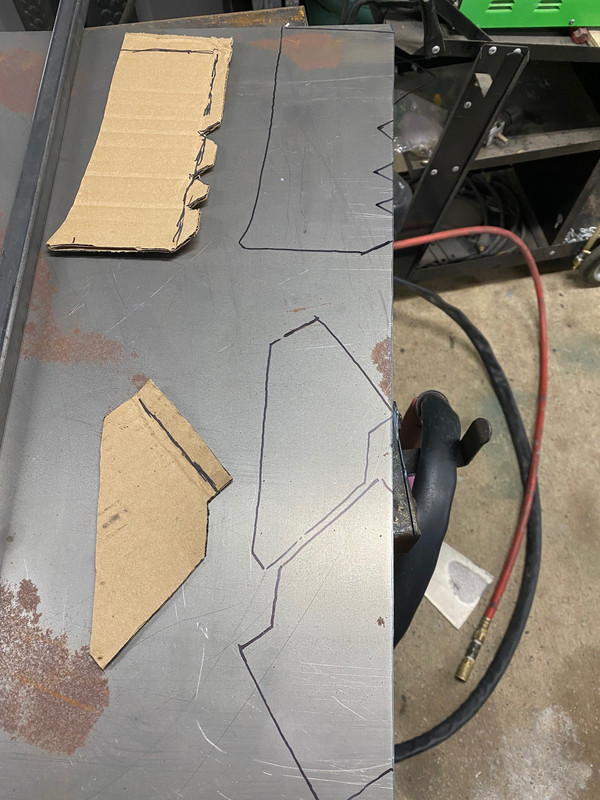

    Using cardboard to make templates works great.
    [​IMG]


    One can actually cut along the cardboard using it as a guide for the plasma cutter and not burn the cardboard, ok, might singe it.
    [​IMG]

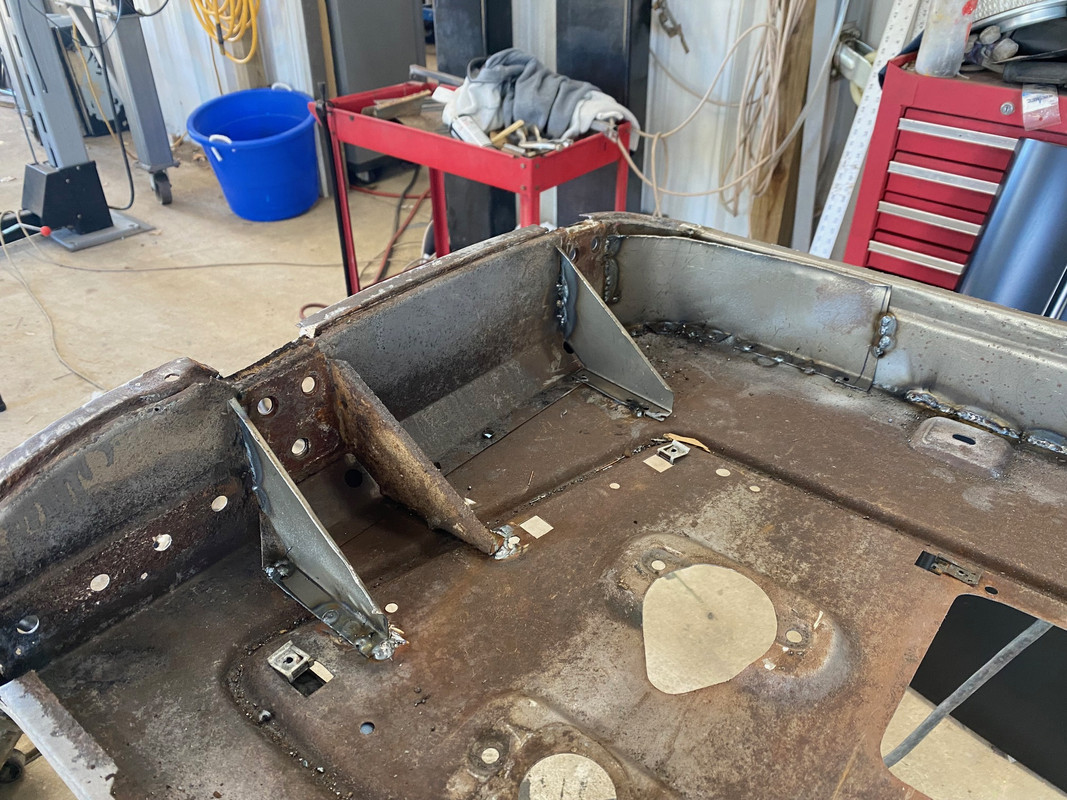

    though it's not "pretty", it will do. However is solid.
    [​IMG]

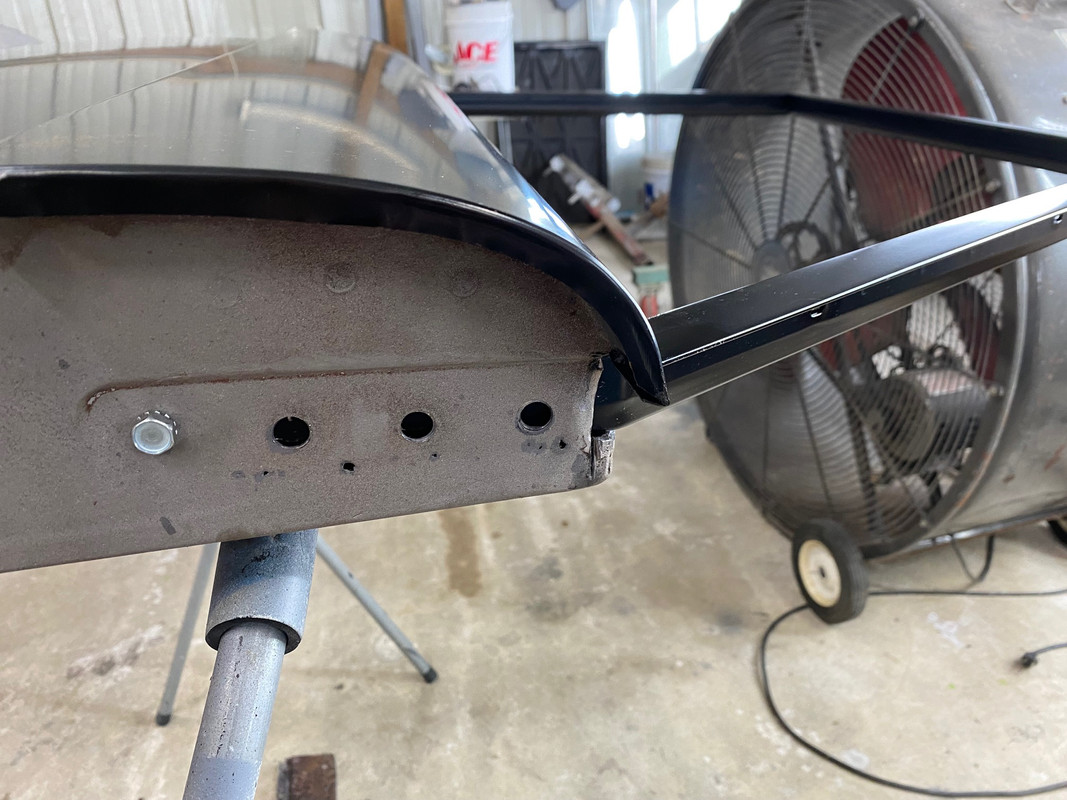

    On the new window frames, they come with threaded holes to bolt it to the newer doors. I was expecting just to weld it to the door. I found they did this so one can remove the window frames and with the glass down makes for a nice ride without a window frame. So I get to fill in some holes, or weld in new metal and try to mimic this~ great
    [​IMG]

  20. Jan 13, 2022
    hudsonhawk

    hudsonhawk Well-Known Member 2020 Sponsor

    North Texas...
    Joined:
    Feb 4, 2005
    Messages:
    1,902
    The tried and true CAD method.

    You do some great work. Looking forward to more pics and stories.
