'65 Rubicon Rig

Discussion in 'Builds and Fabricators Forum' started by timsresort, Dec 27, 2020.

  1. Mar 9, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    Well last weekend was a bust for jeep work, but good for the snowpack. Today everything is back to normal road-wise, except for the hoards of flatlanders that are mysteriously drawn to deep snow. Anyway, picked up the head from Danny, he explained everything to me: valve guides, seats, 3 angle valve grind, valve seals, reassemble. He also uses a loctite high temperature glue behind the seats to seal and dissipate heat. Which he says was one of the benefits of leaded gas, dissipating heat away from the exhaust valve. Old and new.
    [​IMG]
    Looks great, and I am very happy with a skilled machinist that does good work in a timely manner for a reasonable price, in 2024 no less.
    [​IMG]
    Before I paint it, I removed these little emissions port plugs that were in the old head. Not sure where you would get these if you needed them. Installed in the new head.
    [​IMG]
    On the old head, I wanted to see what started all this, so I drove the number 3 exhaust seat out. It was wet behind it between the 2 valves.
    [​IMG]
    After a little clean up, there are 3 small dark spots that could be pinholes into the water jacket between the valves. I think this is the smoking gun.
    [​IMG]

    Rodney, Rozcoking23, blalp! and 9 others like this.
  2. Mar 9, 2024
    vtxtasy

    vtxtasy oldbee 2024 Sponsor 2023 Sponsor

    Tucson, AZ
    Joined:
    Feb 5, 2006
    Messages:
    1,552
    You are lucky to find a good machinist. Did he use the newer style Viton seals or the old rubber style valve seals?

    Last edited: Mar 9, 2024
    Rodney likes this.
  3. Mar 9, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    You know, I didn't ask that, and it's hard to see now. Can you explain umbrella seals if you don't mind?

    Rodney likes this.
  4. Mar 9, 2024
    vtxtasy

    vtxtasy oldbee 2024 Sponsor 2023 Sponsor

    Tucson, AZ
    Joined:
    Feb 5, 2006
    Messages:
    1,552
    I should have said did he replace the umbrella seals with the new style seal which requires cutting of the top of the guide to fit. Yes, they are hard to see even if colored.
    The advantage is to wipe the valve stem better and smoke less on start up after a period of sitting. A more positive seal. Leaks down the stem less.
    [​IMG]
    The original seals would have been like these.
    [​IMG]

  5. Mar 9, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    John, yes I can see the top style in there. Thanks for the info.

  6. Mar 9, 2024
    vtxtasy

    vtxtasy oldbee 2024 Sponsor 2023 Sponsor

    Tucson, AZ
    Joined:
    Feb 5, 2006
    Messages:
    1,552
    Good to hear that he went the extra mile. (y)

    timsresort likes this.
  7. Mar 10, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    I want to get this jeep back together soon, as spring is coming and I haven't even started on Woodstock yet. This POR15 product is what I have used for several years for engine paint. It helps when all my jeeps have the same motor. Buick Green is the color, and it dries fast, lasts a good while. I have sprayed entire engines, but for this I will brush 2 coats on.
    [​IMG]
    First coat, took a few minutes, I will let this tack up a little before the second coat.
    [​IMG]
    Next coat, looking nice and smooth now, but someone wants it moved outside, so the back deck had some sun. I'll let it off-gas there for a while.
    [​IMG]
    By late afternoon the paint had smoothed out a lot, no brush marks, and don't ask me why this matters on a trail jeep. It was dry to the touch, so I moved it into the indoor drying station for the night. No smell now, so it was not questioned.
    [​IMG]

    Rich M., Rodney, blalp! and 6 others like this.
  8. Mar 10, 2024
    vtxtasy

    vtxtasy oldbee 2024 Sponsor 2023 Sponsor

    Tucson, AZ
    Joined:
    Feb 5, 2006
    Messages:
    1,552
    Well...I would say, cause you can. Looking good! I ended up using the Duplicolor Detroit Alpine Green engine paint with ceramic.
    Spray cans and seemed like the thing to do at the time. Did the thought ever go through your mind to do both cylinder heads as
    you had it down that far and had the gaskets? Or maybe the valves looked that good on the leaking head. Just curious.

    Rodney, blalp!, Rozcoking23 and 2 others like this.
  9. Mar 10, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    I did think of the other side, but since this could be caused by the random offset core from the foundry, and no sign of leak on the other side, and the heads have maybe 1000 miles on them since they were last worked, I think i'll take my chances. That is based on not trying to get too far into project creep, as I am not looking for stuff to do. But yes, I did consider it. And cost. This was $350, plus gaskets and fuel and time.

    Rodney, blalp!, vtxtasy and 3 others like this.
  10. Mar 11, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    With the paint dry overnight, I consult old trusty, the service manual. Just wanted to check on head bolt torque and sequence.
    [​IMG]
    I cleaned all the head bolts, gave them a light coat of permatex thread sealant. Then spray copper on the head gasket and set it on there. Went through the torque sequence from the manual, and it's ready for the rocker assembly.
    [​IMG]
    Dropped the push rods in, then lined up the rockers and slowly tightened. Made sure the push rods are properly seated.
    [​IMG]
    Next I installed the intake valley gaskets on the block, and set the intake on the heads. Installed 4 bolts loosely, then slid the intake gaskets in. Went throught the torque sequence from the book.
    [​IMG]
    Lastly for the afternoon, installed the header back to the head, tightened all bolts. Forgot the dipstick, had to go back for that one.
    [​IMG]

  11. Mar 14, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    After work, work. Bolted the power steering pump back to the head, tightened the belt. Installed the distributor cap, and wires. New Champion plugs for both sides gapped and installed. All minor connections: hoses, electrical, fuel. Wet down with new oil and filter, new coolant, new power steering fluid. Jacked up the front end so I can cycle the steering to get most of the air out of the system before firing. Connect the battery, and fire it up briefly, then check oil, ps fluid and coolant. Top all off, fire it up and bring up to 180 degrees. Sounds good, no leaks.
    [​IMG]
    The Murphys Law I was brought up with keeps me from putting the fender back on until everything checks out. So, the main winter prsoject on the Tux, (Sierra), are wrapped up. Fixed the leaky head, rebuilt and installed a 4-turn Saginaw box for slower steering.
    [​IMG]
    All that's left is a test drive Saturday, too bad I can't get on a trail somewhere.

    blalp!, Andrew Theros, jzeber and 9 others like this.
  12. Mar 16, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    Somewhere on the Rubicon there's a rock.
    [​IMG]
    That's the working title for my novel. No, somewhere Nick got the same twisted feeling enough to get the right front into the fender, 2 years in a row. I need a flange-straightening tool. Thinking about this.
    [​IMG]

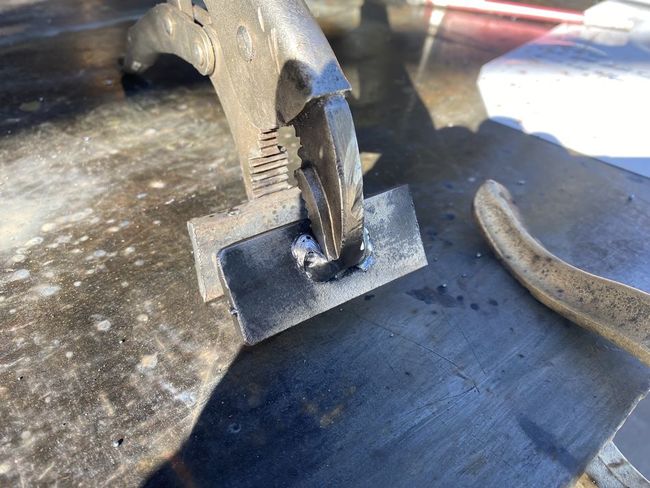

    I looked around for a sacrificial pair of vise grips, but no cheap ones to be found, so welded this pair.
    [​IMG]
    Works pretty well, flange sort of straightened. I will look at extending the bump stop to prevent this again.
    [​IMG]
    With that done, time for a test drive on a nice 45 degree Saturday. About 10 miles, up to 55, up to 180 degrees. No leaks so far. The new cylinder head seems fine, it's running great, and the new steering is slower, and safer on the highway.
    [​IMG]

  13. Mar 25, 2024
    Danefraz

    Danefraz Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Chico CA
    Joined:
    Aug 11, 2012
    Messages:
    2,319
    all caught up. Seems I found this thread over time and then lost it, and then thread binged last two days on it.

    Awesome stuff in this one.

    thank you for posting.

  14. Mar 25, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    Thank you, glad you enjoyed it.

  15. Jul 21, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    Well, the rig performed flawlessly on the ECJ5 run. Nick is an expert driver and spotter, and I am very proud of him. Now, we look to the next run, as July is very full of Rubicon wheeling for us. The right front tire is still contacting the fender, so a lower bump stop is in order.
    [​IMG]

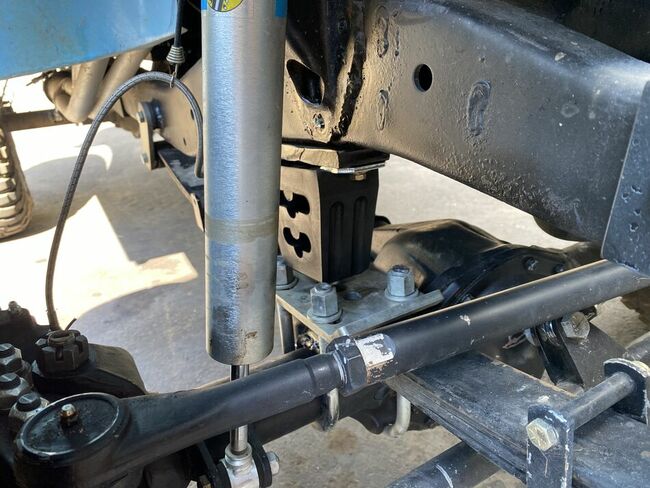

    This should do it. I know it looks like no up-travel, but this thing flexes like crazy. So we will try it out.
    [​IMG]
    Then, when I was cutting off the u-bolt ends, I noticed the driver side u-bolts were loose and the spring center bolt was likely broken. New-ish u-bolts stretch, and need to checked regularly. Easy day just got more complicated, but at least I'm not doing it on the trail.
    [​IMG]

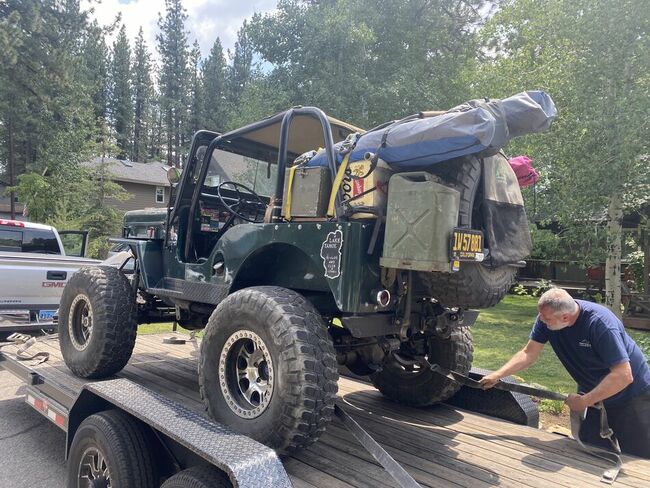

    Enough work, heading in to set up for the 72nd Jeepers Jamboree. Sam and I took 6 tents, beer, gas water, chairs, etc., in for an over-nighter to grab our regular spot in main camp.
    [​IMG]
    Rubicon Springs is the goal, and this why. We jumped in at about 8PM, and is was lovely.
    [​IMG]
    Back home now, and the big trip is Wedsnesday.

    Danefraz, Stakebed, Fireball and 12 others like this.
  16. Jul 22, 2024
    Rozcoking23

    Rozcoking23 RUN & GET BIT! 2024 Sponsor

    Stockton, CA
    Joined:
    Mar 29, 2008
    Messages:
    1,091

    timsresort likes this.
  17. Jul 22, 2024
    Rozcoking23

    Rozcoking23 RUN & GET BIT! 2024 Sponsor

    Stockton, CA
    Joined:
    Mar 29, 2008
    Messages:
    1,091
    [QUOTE=
    Then, when I was cutting off the u-bolt ends, I noticed the driver side u-bolts were loose and the spring center bolt was likely broken. New-ish u-bolts stretch, and need to checked regularly. Easy day just got more complicated, but at least I'm not doing it on the trail.

    You would of got Jon’s and Kyle’s help with the rest of us cheering you on while consuming adult beverages…lol

  18. Aug 21, 2024
    Rozcoking23

    Rozcoking23 RUN & GET BIT! 2024 Sponsor

    Stockton, CA
    Joined:
    Mar 29, 2008
    Messages:
    1,091
    Ill just leave this here:


  19. Aug 25, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    Oh yeah. Nick went through on the Jamboree. Not the cleanest run, but he was the only one that got through without winching in our group. At one point we had a strap on the passenger side cage to keep him from tipping. My buddy John shot the video.

  20. Nov 2, 2024
    timsresort

    timsresort Well-Known Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,561
    Time to get on some winter projects, but first some trip photos. Uncle Tom's Cabin, famous watering hole about halfway between Georgetown and Loon Lake, not to be missed, and we always stop there on Jamboree day. It would be really cool to figure out how to get there on the ECJ5 run somehow.
    [​IMG]
    Next stop, the Beer Tree, bottom of the granite bowl.
    [​IMG]
    The lineup in the Little Sluice. It was tough and someone who shall remain nameless had to get the fishing reel out, and emerged with a bent tie rod.
    [​IMG]
    Our camp in the Springs. I think we had about 12 jeeps and 24 people. Time to relax for a few days.
    [​IMG]
    Our friend Ken, (in the middle background) passed away last winter, so we had a toast and stories. He had been on at least 35 Jamborees we figured.
    [​IMG]
