Rear seat bracket

Discussion in 'Early CJ5 and CJ6 Tech' started by 1967 CJ5A, May 21, 2013.

  1. May 21, 2013
    1967 CJ5A

    1967 CJ5A Mike 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Raleigh, NC
    Joined:
    May 12, 2012
    Messages:
    726
    I'm looking to make some brackets for a rear seat. Can someone make a sketch with dimensions of their brackets for me? There are two types, one made from tubing and one from a flat bar. I'm looking for the flat bar type. Any help is greatly appreciated!
    Looks like this:
    [​IMG]

    Last edited: May 21, 2013
    1967 CJ5A, May 21, 2013
    #1
  2. May 21, 2013
    aallison

    aallison 74 cj6, 76 cj5. Has anyone seen my screwdriver?

    Green Cove...
    Joined:
    Nov 24, 2006
    Messages:
    1,929

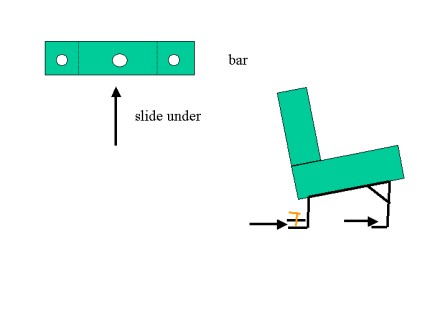

    Some images I found on Google that might help.


    [​IMG]

    [​IMG]

    Strangely enough, all the images came from a place called "early cj5.net". I know at least one came from Tim.

    aallison, May 21, 2013
    #2
  3. May 21, 2013
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,596
    The green one is mine.

    Unfortunately my CJ-6 does not have a back seat, so I can't give you any measurements.

    timgr, May 21, 2013
    #3
  4. May 21, 2013
    Admiral Cray

    Admiral Cray I want to do this again.. Staff Member

    Bainbridge...
    Joined:
    Sep 21, 2009
    Messages:
    204,352
    I will try have get the measurements tonight.

    Since that's my seat. :rofl:

    Last edited: May 21, 2013
    Admiral Cray, May 21, 2013
    #4
  5. May 21, 2013
    Admiral Cray

    Admiral Cray I want to do this again.. Staff Member

    Bainbridge...
    Joined:
    Sep 21, 2009
    Messages:
    204,352
    Rear seat bracket.

    [​IMG]

    [​IMG]

    The bracket is made from 1" x 3/16" flat stock, 6 3/8" long. The hole for the seat pin is centered 2 1/4" from the end of the side with short end bend which is 1 1/8". The longer end bend is 2 1/8" and the center is approximately 3". The bracket is bent up probably a little more than 1/4" so that the 1/4" flat on the rear seat will just fit. Under the rear bed there is a U channel bent sheet steel backup plate 6 3/8" long 1" wide with 3/16" curved channels on each side. It looks like they used 5/16" x 1" carriage bolts with lock washers and nuts. All the brackets look the same, the front brackets have holes too, but not used. The rear holes are drilled through the rear floor and the fronts are not.

    I believe mine are original and have never been removed. I did not take one off to measure, so measurements are approximate.

    Admiral Cray, May 21, 2013
    #5
  6. May 21, 2013
    1967 CJ5A

    1967 CJ5A Mike 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Raleigh, NC
    Joined:
    May 12, 2012
    Messages:
    726
    Oops, didn't mean to steal that pic! Lol just found it on google. How about the brackets that bolt to the seat? (The black metal part in the pic I posted) Thanks again for the help!

    1967 CJ5A, May 21, 2013
    #6
  7. May 25, 2013
    1967 CJ5A

    1967 CJ5A Mike 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Raleigh, NC
    Joined:
    May 12, 2012
    Messages:
    726
    Anyone?

    1967 CJ5A, May 25, 2013
    #7
  8. May 25, 2013
    Admiral Cray

    Admiral Cray I want to do this again.. Staff Member

    Bainbridge...
    Joined:
    Sep 21, 2009
    Messages:
    204,352
    I will try this weekend. :D

    Admiral Cray, May 25, 2013
    #8
  9. Jun 10, 2013
    1967 CJ5A

    1967 CJ5A Mike 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Raleigh, NC
    Joined:
    May 12, 2012
    Messages:
    726
    Bump

    1967 CJ5A, Jun 10, 2013
    #9
  10. Jun 11, 2013
    CJ51962

    CJ51962 Member

    Seattle
    Joined:
    Jan 10, 2013
    Messages:
    244
    Hmm, my back seat sits on top of the fenders. Is my setup an aftermarket addition? Is there any way to age these? It's in a CJ5, but came out of a 3B

    CJ51962, Jun 11, 2013
    #10
  11. Jun 11, 2013
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,596
    None of the forward-facing factory seats mounted to the top of the fenders, AFAIK.

    timgr, Jun 11, 2013
    #11
  12. Jun 11, 2013
    jeepers1969

    jeepers1969 New Member

    Pueblo, Colorado
    Joined:
    Aug 31, 2007
    Messages:
    28
    There is a pair of NOS brackets on ebay right now, may be the ones you are looking for

    jeepers1969, Jun 11, 2013
    #12
  13. Jun 11, 2013
    1967 CJ5A

    1967 CJ5A Mike 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Raleigh, NC
    Joined:
    May 12, 2012
    Messages:
    726
    Those are the floor mount part, which I already have. I'm lookibg for the part in the pic I posted (the part that bolts to the seat).

    1967 CJ5A, Jun 11, 2013
    #13
  14. Jun 13, 2013
    jeepers1969

    jeepers1969 New Member

    Pueblo, Colorado
    Joined:
    Aug 31, 2007
    Messages:
    28
    Sorry I did not reread the whole post, you need the part that attaches to the seat,right? A pair of those just showed up on eBay also.

    jeepers1969, Jun 13, 2013
    #14
  15. Jun 13, 2013
    aallison

    aallison 74 cj6, 76 cj5. Has anyone seen my screwdriver?

    Green Cove...
    Joined:
    Nov 24, 2006
    Messages:
    1,929
    When I was a kid my Dad bought a brand new 76 cj5 with a back seat from the dealer. I don't know if it was factory but the seat was a match in material for the front seats. The mountins for the rear seat was angle iron that set on the rear fenders and the seat acutally hung. No part of it touched the floor. No seatbelts for us kids back in the day. Matter of fact, shortly after the seat was removed and Mom cut a scrap of orange/rust/yellow shag carpet for the back so we could just play.

    I guess my Dad tossed the seat because I was not able to find it when I looked last time I was at their home in Tennessee. Of course I cant find any picts on the internet. and it might have been a dealer seat. He bought it in Chattanooga TN.

    aallison, Jun 13, 2013
    #15
  16. Jun 14, 2013
    Dandy

    Dandy Member 2024 Sponsor

    Estherville IA
    Joined:
    Feb 10, 2008
    Messages:
    793
    Fwiw, I just checked the rear seat brackets on mine that are out of a 1968 cj5,and they are pipe not flat.

    Dandy, Jun 14, 2013
    #16
  17. Jun 14, 2013
    Rondog

    Rondog just hangin' out

    Parker, CO
    Joined:
    Aug 25, 2005
    Messages:
    2,918
    My guess is that one is homemade. I have an original 50's CJ5 rear seat that I bought from a member here, and while the mounting concept is the same, the construction is very different.

    Rondog, Jun 14, 2013
    #17
  18. Feb 16, 2015
    tomahawk715

    tomahawk715 Member

    Joined:
    Nov 16, 2014
    Messages:
    63
    I know I'm pulling up an old thread-are these flat ones produced/sold by anyone?

    If so just looking at cost vs time/materials to make them. Easy enough but if they are cheap enough----

    tomahawk715, Feb 16, 2015
